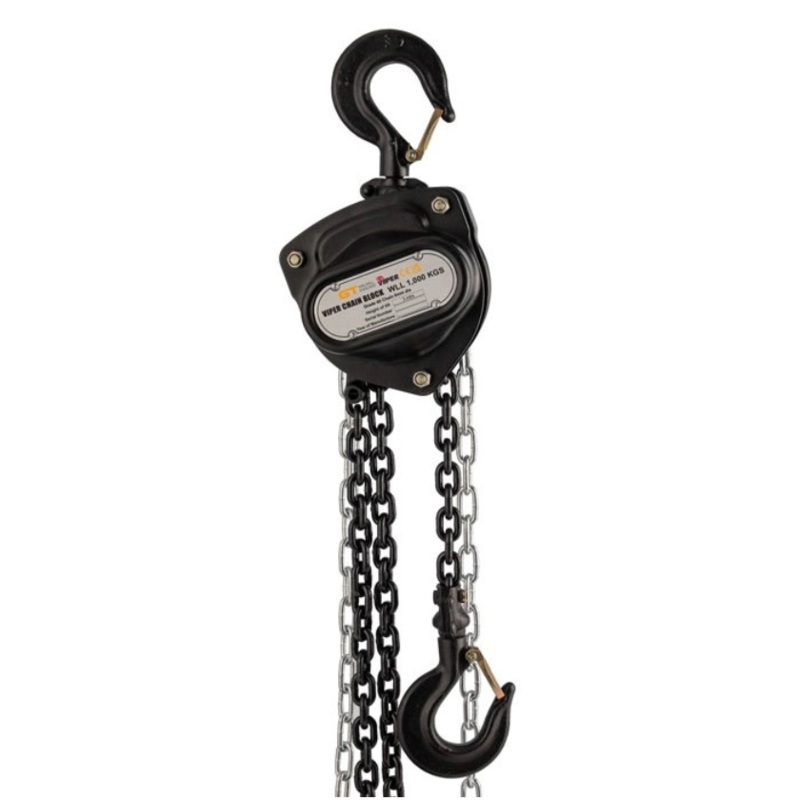

1,000kg Capacity GT Viper Manual Hand Chain Block Each hoist is made with high performance materials for extra durability. Matt black finish. Meets the W.L.L. performance requirements of BS EN 13157. Minimum break load 4 times the W.L.L. Grade 80 (T Fine t
Each hoist is made with high performance materials for extra durability.
Matt black finish.
Meets the W.L.L. performance requirements of BS EN 13157.
Minimum break load 4 times the W.L.L.
Grade 80 (T Fine tolerance calibrated) load chain, meets the WLL performance requirements of BS EN 818-7.
Electro galvanised calibrated hand chain.
The sealed bearings in each unit ensure extra protection and allow complete repair flexibility.
Top and bottom hooks with heavy duty cast catches.
For heights of lift above 12 mtrs please consultOrplex for technical advice and product guidance.
Whilst fleeting or cross hauling is not recommended practice, these items can be used in accordance within the specific safety guidelines for this purpose please check our attached manufacturers guidance
Marked in accordance with BS EN 13157.
Certification available
Spec
Product Code
Capacity
A
B
C
D
H (min)
3 mtr
6 mtr
10 mtr
12 mtr
Carcase
kgs
mm
mm
mm
mm
mm
286-501-1
286-501-2
286-501-3
286-501-4
286-501-5
1,000
156
143
28
40
324
Technical Data
Capacity
Effort req’d to lift max load
Load Chain Dia
Falls of Load Chain
Weight (3 mtr HOL)
Extra Weight per mtr
kgs
N
mm
kgs
kgs
1,000
260
6 x 18
1
10.5
0.77
User Manual
Fleeting / Cross Hauling Advice
