The Raspberry Pi Pico is the first product built on silicon designed
inhouseat Raspberry Pi (Raspberry Silicon). At its heart is RP2040
aRaspberry Pidesigned chip which features two ARM CortexM0+cores
clocked at 133MHz; 256KB RAM; 30 GPIO pins; and a broadrange of
interfacing options. This is paired with 2MB of onboard QSPIFlash
memory for code and data storage.

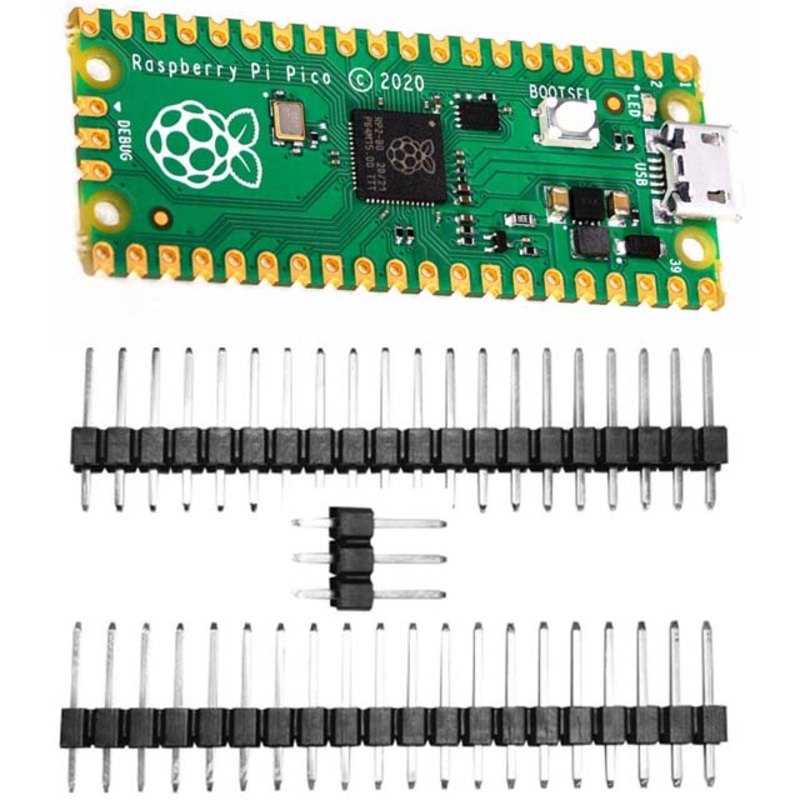

A a solderin header (like two sets ofBreak Away Header Straight 40Pin cut into 2×20 strips and 1×3 strip)
Once the header pins are in place the Pico can be attached directly to a breadboard for wiring and prototyping.

Key Features

• RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
• Dualcore Arm Cortex M0+ processor flexible clock running up to 133 MHz
• 264KB of SRAM and 2MB of onboard Flash memory
• Castellated module allows soldering direct to carrier boards
• USB 1.1 with device and host support
• Lowpower sleep and dormant modes
• Draganddrop programming using mass storage over USB
• 26 multifunction GPIO pins (3.3V ONLY)
• 2 SPI 2 I2C 2 UART 3 12bit ADC 16 controllable PWM channels
• Accurate clock and timer onchip
• Temperature sensor
• Accelerated floatingpoint libraries onchip
• 8 Programmable I/O (PIO) state machines for custom peripheral support
