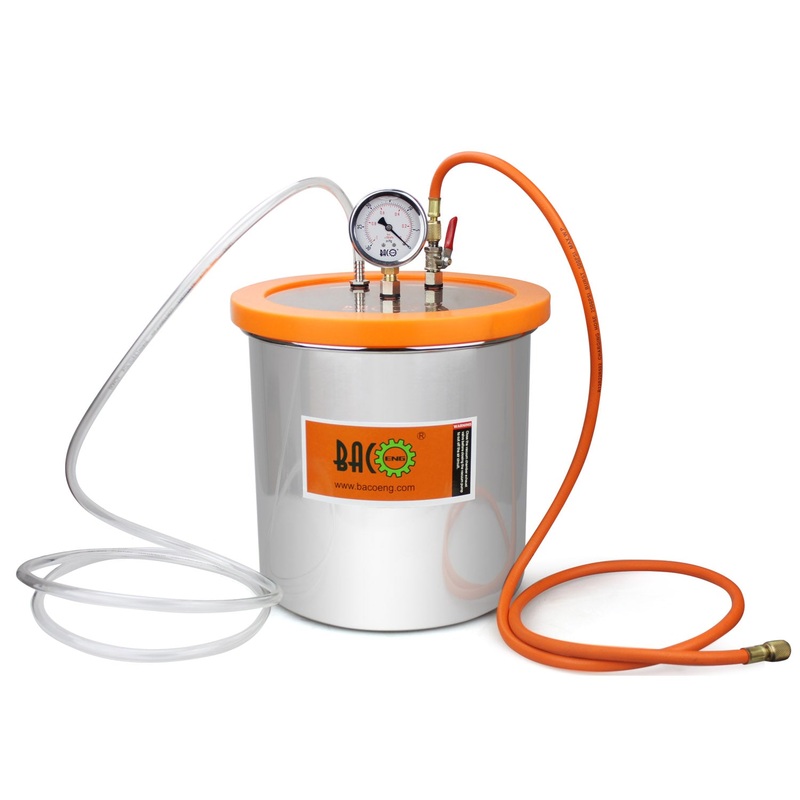

BACOENG 3 Gallon/1.2 QT/2 QT Stainless Steel Resin Trap Vacuum Degassing Chamber (ship to US only)

Intruduction:
Protect your equipment! These vacuum-sealed tanks are installed in the vacuum bagging process between the mold and the vacuum pump to capture excess resin that enters the vacuum line before it can damage your equipment. Resin traps are an integral part of all vacuum infusion and vacuum bagging processes. Our Stainless Steel resin traps come equipped with clear lids that allow you to easily monitor resin accumulation.


Features:

• Resin traps come complete with glycerin-filled vacuum gauge, fittings for use with 1/4” vacuum tubing,brass ball valve and instruction manual.
• Captureexcessresinandprotectyourpump!
• Unique Catch Port Design:An additionalhosecan be installedatthe port inside thetankto facilitate accurate collection of resin.

• 5 Feet Reinforced Vacuum Hosing Connect Directly To Vacuum Pump 1/4″ SAE.
• Measuring range of vacuum gauge0-29.25inHg
• Silicone gasket to be used over 10,000 times without deterioration.

Safety Information:

Iflargeamountsofmixedresinremaininthefeedpotoraccumulateinthecatchpot,theresincanbecomeveryhotindeed.Inextremecircumstances,theresincan actuallystartsmokingasitreachesveryhightemperatures.

Keepaneyeofthecatch potandwaitfortheexothermtodiedown.




TIPS:

• Apply mold release to all interior surfaces of the resin trap prior to lay-up for easy clean-up once the vacuum process is complete.

• Additional containers can be placed in thelarge 3gallontankto collect the resin.

This Kit Includes:

1 Stainless Steel Pot
1 Clear Lid
1 Glycerin-filled Gauge
1 Air Manifold
1 Resin Catch Hose
1 Vacuum Hose


Chamber Size:
3 Gallon 9.8″(ID) 9.8″(H)
1.2 QT,4.3″(ID) 3.9″ (H)
2 QT,5.1″(ID) 4.3″ (H)
