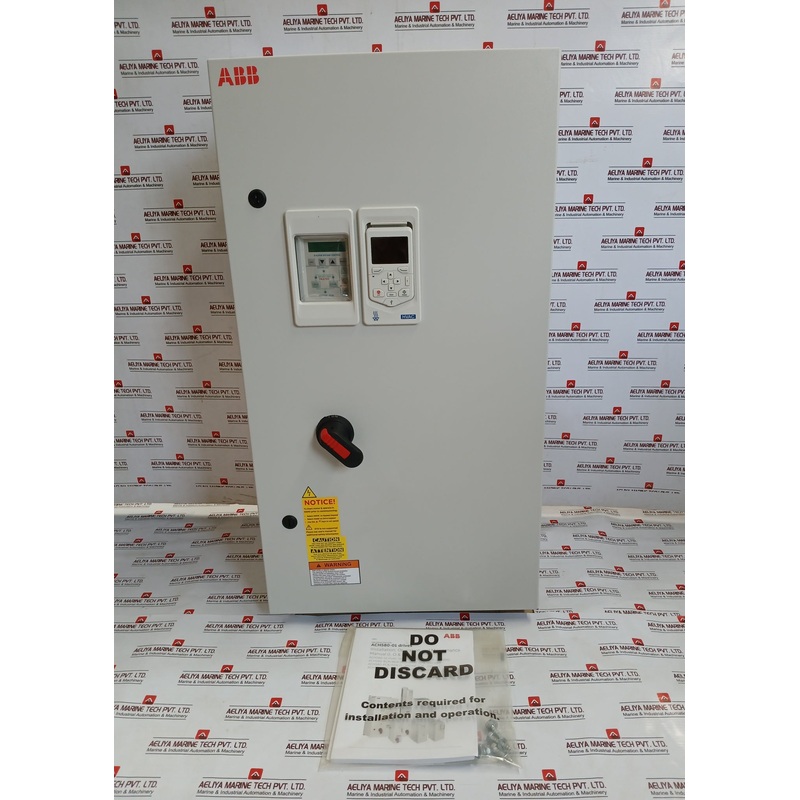

Abb Ach580-bcr-077A-4+B056+F267 Hvac Enclosed Industrial Control Panel 0500 Hz
Abb Inc.
Abb Oy
Abb Drives
Hvac
Product Name/Model Number: Ach580
Product Type: Vfd
Ach580-bcr-077A-4+B056+F267
Vfd Rating:
Input: 3Ph 5060 Hz
Output: 3Ph 0500 Hz
Voltage (U1): 440480 Vac
Voltage (U2): 0U1 Vac
Current (I1N)/(I2N): 77 A
E-clipse Package Rating
Short Circuit: 100Ka
Power (Pn): 60 Hp
Enclosure Ul Type 12
Orig.Drive Firmware/Sw: 2.15.0.10
Orig.Bypass Firmware: V2.042
Schematic 3Axd50000332175,
3Axd50000312160
Enclosed Industrial Control Panel
No: F 44727772
E101649
M/N: Ach-ap-h
Code: 3Aua0000064886
3Aua0000064886D1387997Sb
Sw: V5.95
E-clipse Bypass Control
580 Drive
3Axd50000146406
Rev: B
3Axd50000223015
3Axd50000243624F21390429Sb
Type: Rbcu
Rev: F
Svi
V2
E136774
Hcsa-4-1
Code: 3Axd50000218653
3Axd50000218653B1260588Tg
Code: 3Aua0000118614
3Aua0000118614C1170569Ws
Copi-01
3Aua0000118152H1162030Ws
E243951
Cp 5
94V-0
Cti 3
10000007806 D 2/2
221160029928(R6990)
Ach580-01-077A-4
Ach580-bcr(1350 Hp, 0.75250 Kw)
Made In Usa
Made In Thailand
Made In China
Weight: 86 Kg
