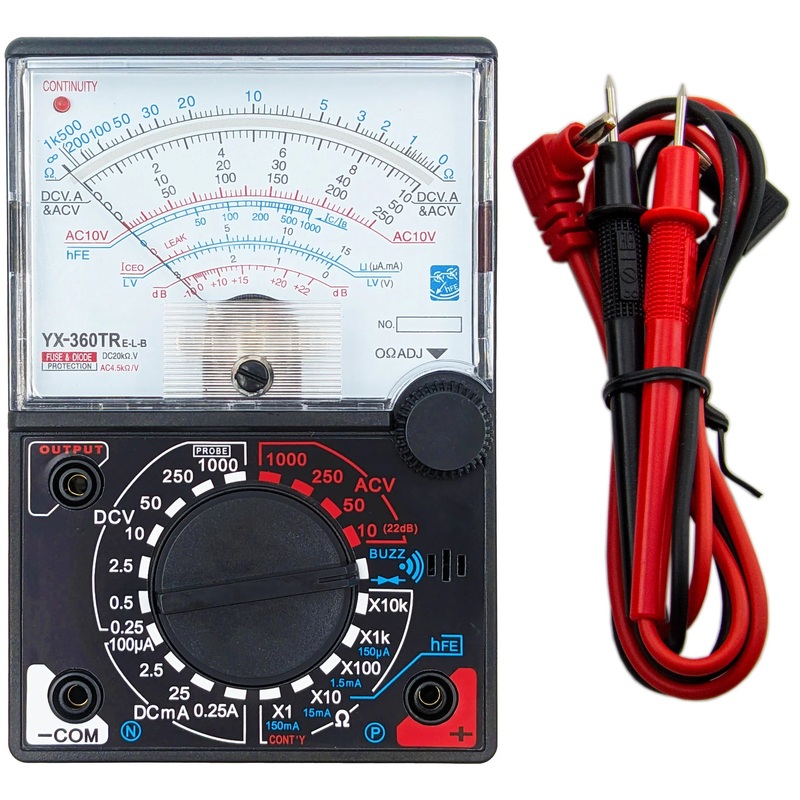

• Handheld Analog Multimeter: Traditional needle-type pointer meter for precise and reliable measurements with fuse and diode protection
• Versatile Functionality: Wide range of measurement capabilities, including AC/DC voltage, DC current, and resistance. It’s perfect for electrical troubleshooting, DIY projects, and basic electronic repairs.
• Continuity LED & Buzzer: The built-in LED and buzzer provide a visual and audible indication when continuity is detected, making it easier to identify faults and malfunctions in circuits.
• Compact and Portable Design: Weighs 8.4 ounces (with batteries installed) and features a compact size (6″ x 4″ x 1″) for on-the-go tasks.
• Includes: Analog multimeter, test leads, user manual, 9V battery, and two AA batteries. Note: Requires a Phillips screwdriver to insert or replace batteries.

Specifications:

• DC Voltage
  • Ranges: 0.25/0.5/10/50/250V/1000V (Accuracy at FSD: 3%, 1000V: 5%)
  • Sensitivity: 20k /V (extendable to 25k /V with optional HV probe – not included)
• AC Voltage
  • Ranges: 10/50/250V/1000V (Accuracy at FSD: 4%, 1000V: 5%)
  • Sensitivity: 9K /V
• Decibels
  • dB: -10 to +22dB. 0dB = 1mw/600.
• DC Current
  • Ranges: 100A (at 0.25VDC position), 2.5mA. 25mA. 0.25A.
  • Accuracy at FSD: 3% (10A: 5%)
  • Volt drop: 250mV
• Resistance
  • Ranges:
    • x1 – 0.2 up to 1k (midscale at 10)
    • x10 – 2 up to 10k (midscale at 100)
    • x100 – 20 up to 100k (midscale at 1k)
    • x1K – 200 up to 1M (midscale at 10K)
    • x10K – 2K up to 10M (midscale at 100K)
  • Accuracy at FSD: 3%
• Iceo: 150A – 15mA – 150mA
• hFE: 0 – 1000 (via transistor testing socket – transistor testing attachment not included)

Datasheet

01AM360TRB Datasheet
