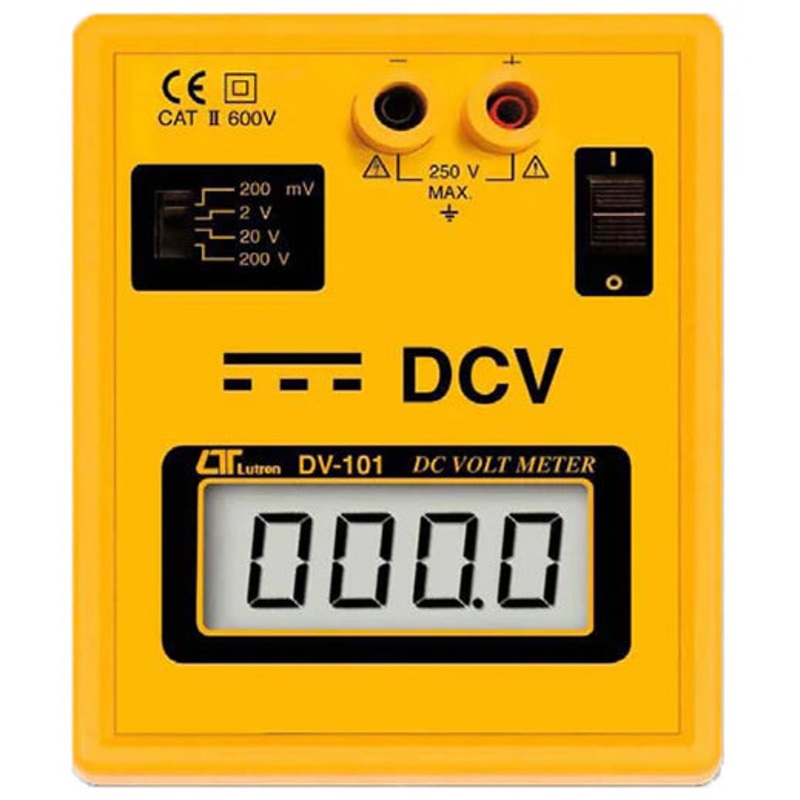

• • Easy to operate DCV bench meter, compact size (5.8″ x 2.6″ x 4.0″)
  • 4 ranges:
    • 200 mV x 0.1 mV
    • 2 V x 0.001 V
    • 20 V x 0.01 V
    • 200 V x 0.1 V
  • Large LCD display, 0.7-inch (18mm) digit height
  • Approx. 0.4 sec. sampling time
  • Automatic zero adjust
  • Features high input impedance, overload protection for each range, and over-input indicator
  • Standard banana terminals (red and black)
  • On/off switch
  • 9V battery operation
  • Meets IEC1010 CATII 600V safety requirements
  • Applications include education, industrial, quality control, research and development, laboratory

General Specifications:

• Measurement: DC voltage
• Display: LCD display, 18 mm ( 0.7″ ) digit height
• Range / Resolution:
  • 200 mV x 0.1 mV
  • 2 V x 0.001 V
  • 20 V x 0.01 V
  • 200 V x 0.1 V
• Accuracy:
  • ( 0.5%+1d ), reading @ 200 mV range
  • ( 0.8%+1d ), reading @ 2V/20 V/200 V range
• Input Impedance: 10M ohm
• Polarity: Automatic Switching, ‘_’ symbol indicates negative polarity
• Zero Adjustment: Automatic
• Over-input: display shows ‘1’ or ‘-1’
• Safety: Meets IEC1010 CATII 600V
• Sampling Time: Approx. 0.4 second
• Operating Temperature: 32 to 120 (0 to 50)
• Operating Humidity: Less than 80% RH
• Power Supply: 9V battery
• Power Consumption: Approx. 1.9 mA
• Dimensions: 5.8 x 2.6 x 4.0 inch
• Weight: 0.68 LB (including battery)
• Input terminal: Standard banana terminals (Red & Black)
• Accessories: Instruction Manual
