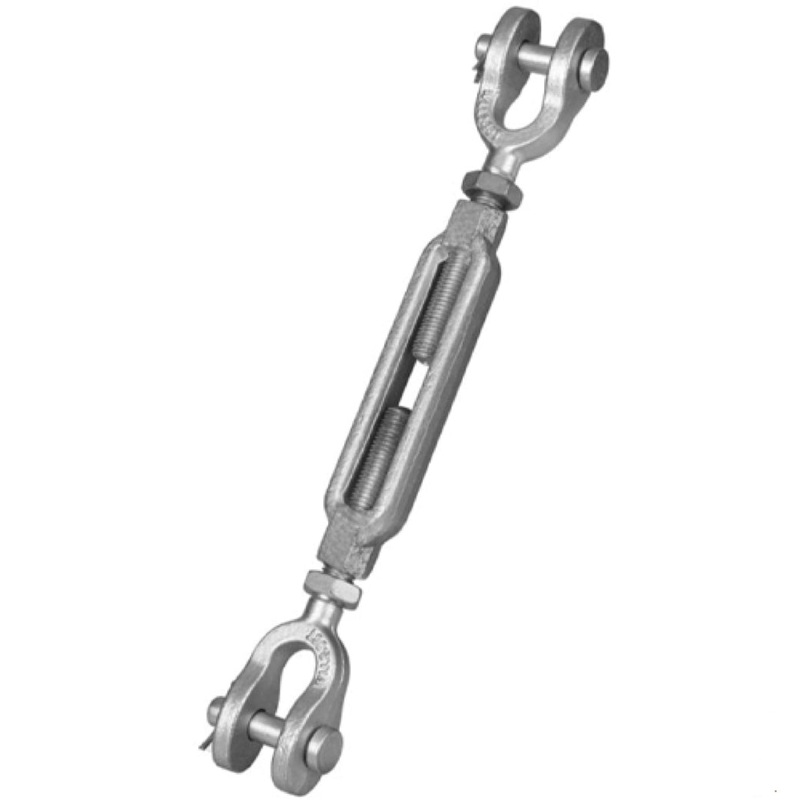

Drop Forged Turnbuckle Jaw/Jaw – US Style

• Drop forged, high tensile steel, SAE 1035 or SAE 1045.
• Hot dipped galvanised finish.
• Meets the performance requirements of ASTM F1145-92 (formerly US Fed. Spec. FF-T-791b).
• Temperature range -20C up to +200C.
• Proof load tested to 2.5 times the W.L.L.
• Minimum breaking load is 5 times the W.L.L.
• UNC Threads.
• All items available with lock nuts.
• Up to 5/8 size supplied with safety bolt, sizes 3/4 and above with cotter split pins.
• Marked with CE, UKCA, W.L.L, manufacturers ID, size, traceability code and L/R.
• Certification – Declaration of Conformity.
• Turnbuckle used for adjusting and ensuring proper tension in roped, cabled, wired, and rod systems. Threaded inserts at both ends, allow for adjustments by rotating the body. Its versatile design allows for precise increments, making it a valuable tool for various applications such as boat rigging, fence tensioning, lifting rigs, and even in theatrical and boxing/wrestling settings.

Spec

SKU Size Take Up W.L.L. A B D E F C O Weight inches inches t mm mm mm mm mm mm mm kgs 286-900-1 3/8 6 0.54 180 152 13.7 21.5 9 290 442 0.71 286-900-2 1/2 6 1 190 152 16 26.5 11 330 482 0.37 286-900-3 1/2 9 1 267 229 16 26.5 11 406 635 0.79 286-900-4 1/2 12 1 343 305 16 26.5 11 480 785 1.09 286-900-5 5/8 6 1.59 203 152 21 33 14 378 530 1.35 286-900-6 5/8 9 1.59 279 229 21 33 14 454 683 1.53 286-900-7 5/8 12 1.59 355 305 21 33 14 530 835 1.79 286-900-8 5/8 18 1.59 286-900-9 3/4 6 2.36 213 152 26 37.25 17.5 422 574 1.99 286-900-10 3/4 9 2.36 289 229 26 37.25 17.5 498 727 2.48 286-900-11 3/4 12 2.36 365 305 26 37.25 17.5 574 879 2.68 286-900-12 3/4 18 2.36 517 451 26 37.25 17.5 726 1183 3.32 286-900-X 7/8 6 3.27 222 152 31 42.75 20.5 466 618 3.15 286-900-13 7/8 12 3.27 374 304 31 42.75 20.5 618 922 3.96 286-900-14 7/8 18 3.27 527 457 31 42.75 20.5 770 1227 5.09 286-900-15 1 6 4.54 233 152 33 52 24 510 662 4.44 286-900-16 1 12 4.54 385 305 33 52 24 662 967 5.69 286-900-17 1 18 4.54 537 457 33 52 24 814 1271 6.74 286-900-18 1 24 4.54 690 610 33 52 24 966 1576 8.03 286-900-19 1 1/4 6 6.89 236 152 47 70.5 31 598 598 8.55 286-900-20 1 1/4 12 6.89 388 305 47 70.5 31 750 1055 10.27 286-900-21 1 1/4 18 6.89 541 457 47 70.5 31 902 1359 11.99 286-900-X 1 1/4 24 6.89 693 610 47 70.5 31 1054 1664 13.69 286-900-22 1 1/2 12 9.71 403 305 57 70.5 37 800 1105 13.56 286-900-23 1 1/2 18 9.71 555 457 57 70.5 37 952 1409 16.2 286-900-24 1 1/2 24 9.71 708 610 57 70.5 37 1104 1714 18.88 286-900-25 1 3/4 18 12.7 571 457 66 85 44 1046 1503 25.15 286-900-26 1 3/4 24 12.7 724 610 66 85 44 1198 1808 28.06 286-900-27 2 24 16.8 740 610 66.3 92 54 1340 1950 43.71 286-900-28 2 1/2 24 27.2 795 610 78 110.8 60.5 1478 2088 81.8 286-900-29 2 3/4 24 34 795 610 93.5 104.5 73 1562 2172 95.14
