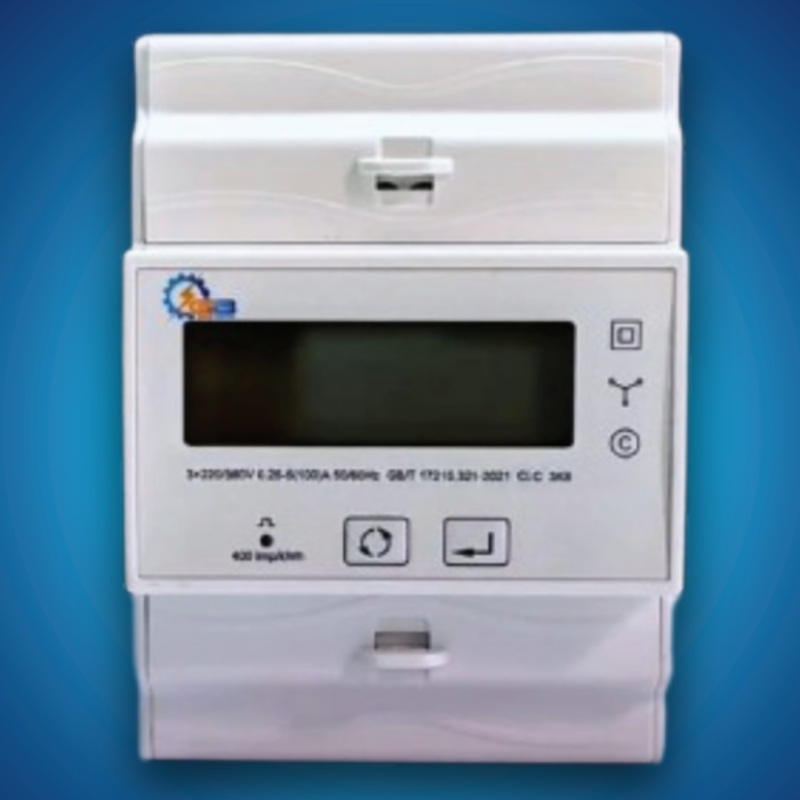

The GB180G is a compact and reliable three-phase DIN rail energy meter designed for accurate electricity consumption measurement in industrial, commercial, and residential settings. It features a multi-functional LCD that displays real-time data like voltage, current, and power, and supports bi-directional energy measurement. With RS485 communication for remote monitoring and built-in security features, it provides essential data for efficient energy management and cost control.

Features of the GB180G Three-Phase Din Rail Energy Meter:

• Multifunctional parameter measurement
• Support bi-directional power metering
• Support direct access type, CT variable ratio access
• Support 1-channel pulse optocoupler output interface, output parameters configurable
• Support RS485 communication function, support Modbus RTU protocol
• Standard 4-mode digital width, TH35-7.5 type din rail mounting
• Large LCD display, white backlight, backlight lighting time adjustable
• LCD refresh time: 1 second, support manual page turning and automatic display rotation (can be set to switch)

Specifications of the GB180G Three-Phase Din Rail Energy Meter:

• Model: GB180G
• Phases: Three-phase (4 wire)
• Rated Voltage: 3230/400VAC, 3120/208VAC, 3220/380VAC (various options available)
• Frequency: 50Hz or 60Hz

• Rated Current: Typically 5A (basic current), with maximum direct connection up to 100A (e.g., 5(100)A). Some models support CT connection (e.g., 1.5(6)A via CT).
• Accuracy Class: Class 1.0 for active energy, Class 2.0 for reactive energy.
• Display: LCD (6+1 or 6+2 digits, or 7 digits)
• Power Consumption: Voltage circuit: <2W/10VA; Current circuit: <1.5VA

• Starting Current: 0.004Ib or 0.2%In (for CT type), 0.4%Ib (for direct type)
• Impulse Voltage Withstand: 6kV (1.2s waveform)
• IP Grade: IP20 (case), some variants may have IP54 (panel)
• Operating Temperature: 25C+55C (some models 30C+70C)
• Storage Temperature: 40C+70C (some models 40C+80C)
• Relative Humidity: 75% (non-condensing)
• Dimensions (L x W x H): Approximately 90mm70mm70mm (varies slightly by specific model/manufacturer, e.g., 72mm63mm90mm or 126mm66mm90mm)
• Weight: Approximately 0.6kg2.5kg.

Uses:

• Commercial and Industrial Facilities: Measuring electricity consumption for billing, cost allocation, and energy efficiency initiatives in factories, offices, and commercial buildings.
• Residential Buildings: Monitoring household electricity usage, especially in multi-unit dwellings or for specific appliances.
• Small and Medium-Sized Enterprises (SMEs): Providing detailed energy data for operational cost management.
• Sub-metering: Used to measure energy consumption of specific departments, tenants, or equipment within a larger facility.
• Renewable Energy Systems: Monitoring energy generated and consumed in solar (photovoltaic) installations and other renewable energy setups.
• Load Balancing: Identifying and managing uneven power distribution across phases to optimize system performance and prevent equipment damage.
• Power Quality Monitoring: Some advanced models can monitor parameters like harmonics and voltage fluctuations to ensure a stable power supply.
• Energy Management Systems (EMS): Integrating with EMS platforms via RS485/Modbus for centralized data collection, analysis, and remote control.

Benefits:

• Accurate Measurement: Provides highly precise data on active and reactive energy consumption, crucial for accurate billing and energy analysis.
• Cost Management: Enables businesses and homeowners to identify high-consumption periods or equipment, allowing for better energy management, load shifting, and cost reduction.
• Space-Saving: Its compact DIN rail design optimizes space in electrical panels and distribution boards.
• Easy Installation: Designed for straightforward mounting on standard DIN rails, simplifying setup.
• Reliable Data: High accuracy, anti-tamper features, and data retention during power outages ensure trustworthy energy readings.
• Remote Monitoring: RS485 communication allows for remote data collection and integration into smart metering or building management systems.
• Enhanced System Operation: Helps in load balancing and power quality monitoring, contributing to smoother operation and extended lifespan of electrical equipment.
• Compliance: MID certification ensures suitability for commercial billing and compliance with regulatory standards.
• Long Lifespan: Designed for a long average life (e.g., 10 years or more) under normal operating conditions.

Package includes:

1x GB180G Three-Phase Din Rail Energy Meter
