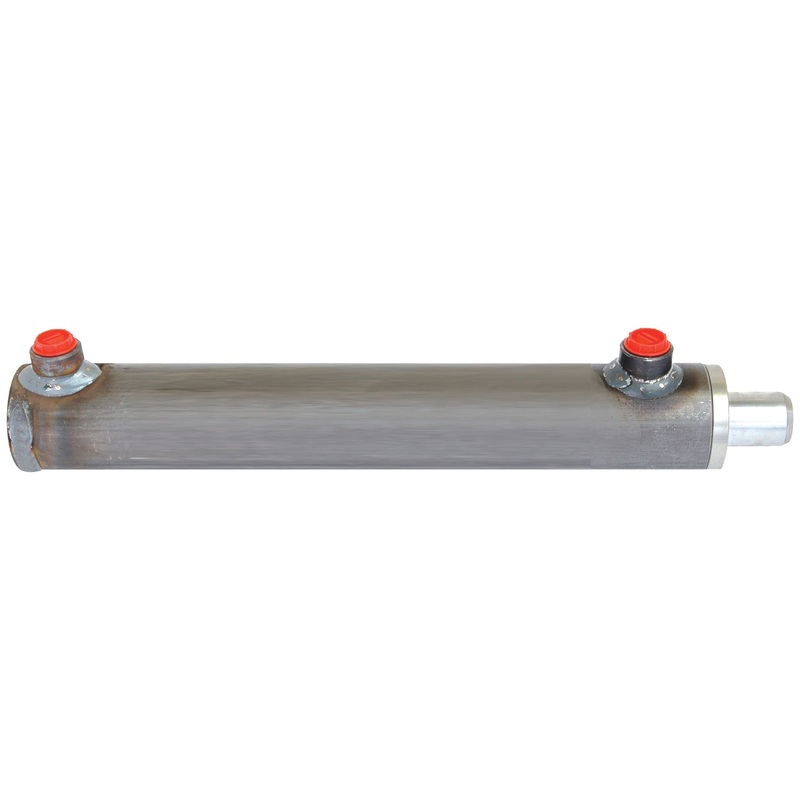

Hydraulic Double Acting Cylinder Without Ends, 25 x 40 x 250mm | Sparex Part No. S.59203

Product Overview

Introducing the Hydraulic Double Acting Cylinder Without Ends, designed for optimal performance and durability. With dimensions of 25 x 40 x 250mm, this cylinder is perfect for various hydraulic applications, providing reliable force and efficiency.

Product Specifications

• Brand: Sparex
• Closed Centre Length: 380 mm
• Cylinder Bore: 40 mm
• Cylinder OD: 50 mm
• Cylinder Stroke: 250 mm
• Open Centre Length: 630 mm
• Piston Rod Exposed Length: 23 mm
• Piston Rod Diameter: 25 mm
• Pull Capacity @ 180 bar: 1378 kg
• Push Capacity @ 180 bar: 2262 kg
• Tariff Code: 8413910090
• Thread Size: 1/4”

Compatibility Information

This hydraulic cylinder is versatile and can be used in various applications; however, it is not associated with any specific make or model.

Manufacturer Information

This product does not correspond to any particular OEM part number, ensuring a broad range of compatibility for your hydraulic needs.

Enhance your hydraulic system’s performance with the Hydraulic Double Acting Cylinder Without Ends from Sparex, a trusted name in hydraulic solutions.
