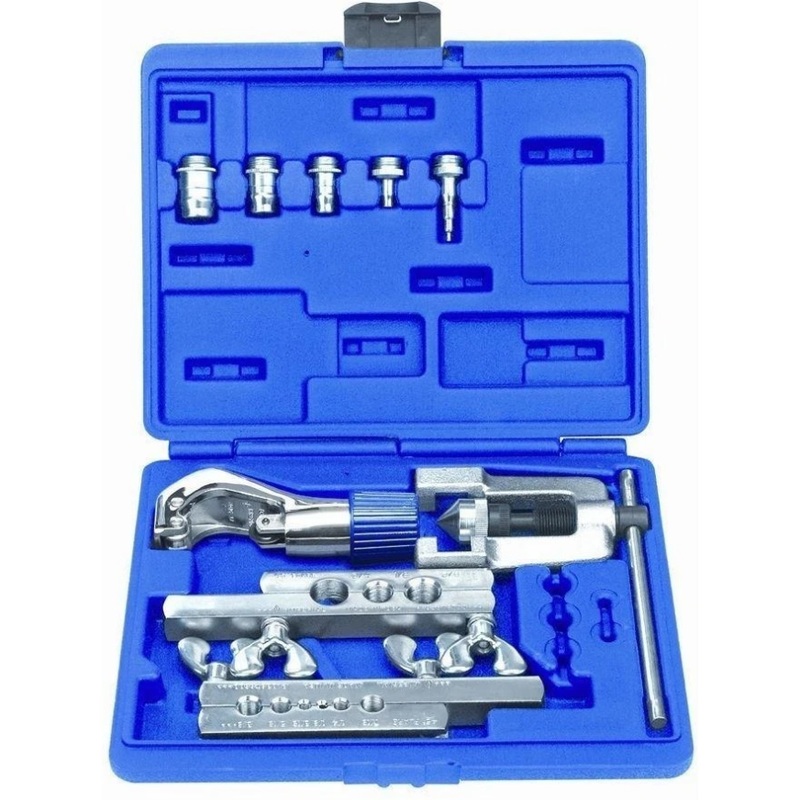

The Imperial 45 Flaring, Swaging & Cutting Kit (model number 275-FSC) is a tool kit that includes tools for flaring, swaging, and cutting tubes from 1/8″ to 3/4″ in outer diameter. The kit is designed to create a precise 45-degree flare on copper, brass, aluminum, and thin-wall steel tubing and perform swaging on soft copper and aluminum tubing. The tube cutter is suitable for cutting the tubing up to 1 inch in diameter. The kit has various adapters and a carrying case for easy transportation and storage.

Key Features

Contains 275-FS, TC-1000 Cutter & Case

• For 1/8 to 3/4 (4 mm to 22 mm) O.D. tubing.
• 275-FS Flares and Swages.
• Converts quickly. Screw-type feed. Ideal for use in close quarters.
• Two bars included cover nine sizes.
• Swivel-type swaging adapters and flaring cones are hardened steel, chrome finished for easy operation.
• Self-centering, slip-on forged steel yoke. Includes tool case. Wt. 3kgs.
• Flares 1/8, 3/16, 1/4, 5/16, 3/8, 7/16, 1/2, 5/8 and 3/4 O.D.

What’s included

Includes 5 swage adapters for 7 tube sizes: 3/16, 1/4, 5/16, 3/8, 1/2, 5/8, 3/4 O.D. Tube.

Replacement parts:

• 278-FS-03X04X06 Swage Adapter3/16, 1/4, 3/8.
• 278-FS-08 Swage Adapter 1/2.
• 278-FS-10 Swage Adapter 5/8.
• 278-FS-12 Swage Adapter 3/4.
• 278-FS-05 Swage Adapter 5/16.
• S38600 Flaring Cone.
