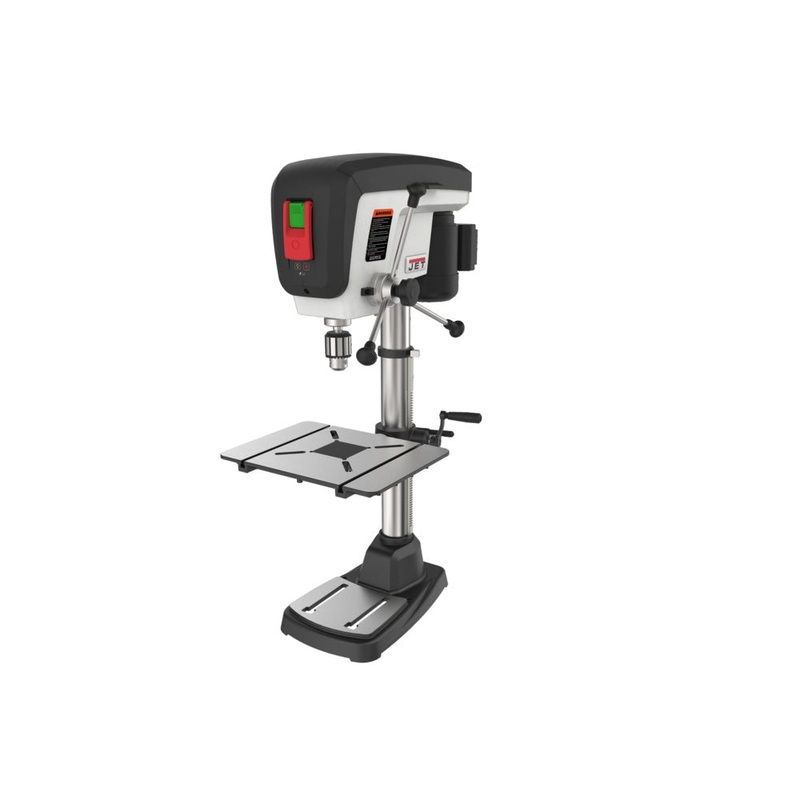

Jet 716200 Description The new JET JDP-15B, 15" Benchtop Drill Press. From a full 3-1/8" of spindle travel to the sturdy cast iron head with a poly v-belt drive system, this drill press is designed to perform. This drill press also features a one-handed be
The new JET JDP-15B, 15″ Benchtop Drill Press. From a full 3-1/8″ of spindle travel to the sturdy cast iron head with a poly v-belt drive system, this drill press is designed to perform. This drill press also features a one-handed belt-tensioning system and a large 12-1/2″ x 17″ work table.
| Motor Power | 3/4 HP |
| Number of Spindle Speeds | 16 |
| Motor Voltage | 115 V |
| Spindle Speed Range | 210 – 3500 RPM |
| Max Spindle Distance to Table | 18-5/16″ |
| Table Tilt (Deg.) | -45 to 45 |
| Column Diameter | 2-3/4″ |
| Swing | 15″ |
| Chuck Size | 5/8″ |
| Base Size | 18″ x 11-3/8″ |
| Motor Amps | 9 |
| Table Size (L x W) | 12-1/2″ x 17″ |
| Spindle Travel | 3-1/8″ |
| Motor Phase (PH) | 1 |
| Prewired Voltage | 115 V |
| Spindle Taper | MT2/JT3 |
| Spindle Distance to Base | 26-3/4″ |
| Assembled Machine Dimensions (L x W x H) | 27″ x 17″ x 42-1/2″ |
