Description

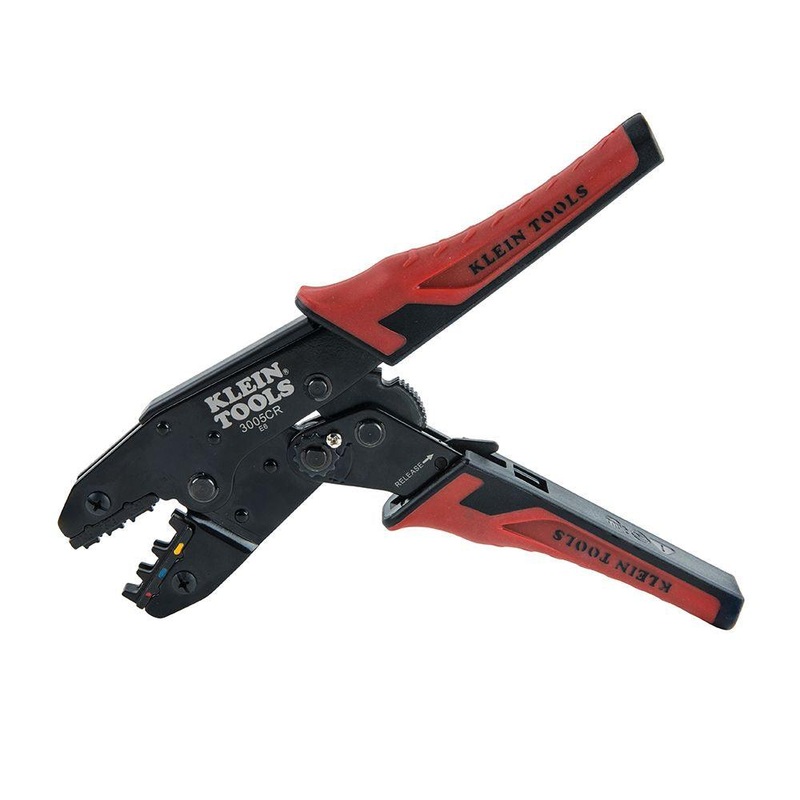

The full-cycle Ratcheting Crimper crimps 10-22 AWG insulated wire terminals. This tool features three crimping cavities in one tool with color-coded wire markings for three size ranges of insulated terminals. Crimper design provides low effort to crimp while maintaining a high terminal pull-off force. Built-in ratchet ensures full-cycle crimping for a uniform crimp every time. Compound lever-action of narrow-span handles puts more crimping power into each squeeze. Comfort grips help reduce hand fatigue.

Benefits

• Crimps insulated terminals onto 10-22 AWG stranded copper wire
• Adjustable compound action design puts more crimping power into each squeeze
• Three crimping cavities in one tool: 2216 AWG (Red), 1614 AWG (Blue) and 1210 AWG (Yellow) terminals
• Built-in ratchet ensures full-cycle crimping for a uniform crimp every time
• Unique cavity design provides consistent crimp from either side of the tool
• Dial adjusts the amount of force applied to the crimp
• Dual-material molded grips provide added comfort

Technical Information

Type:Ratcheting CrimperApplication:Wire CrimpingSpecial Features:3 Crimping CavitiesMaterial:SteelHandle Color:Red and BlackCable Size:10-22 AWG StrandedConnector Type:InsulatedOverall Length:9” (2.3 cm)Overall Height:0.09” (0.2 cm)Overall Width:3” (7.6 cm)Weight:1.3 lb (0.6 kg)
