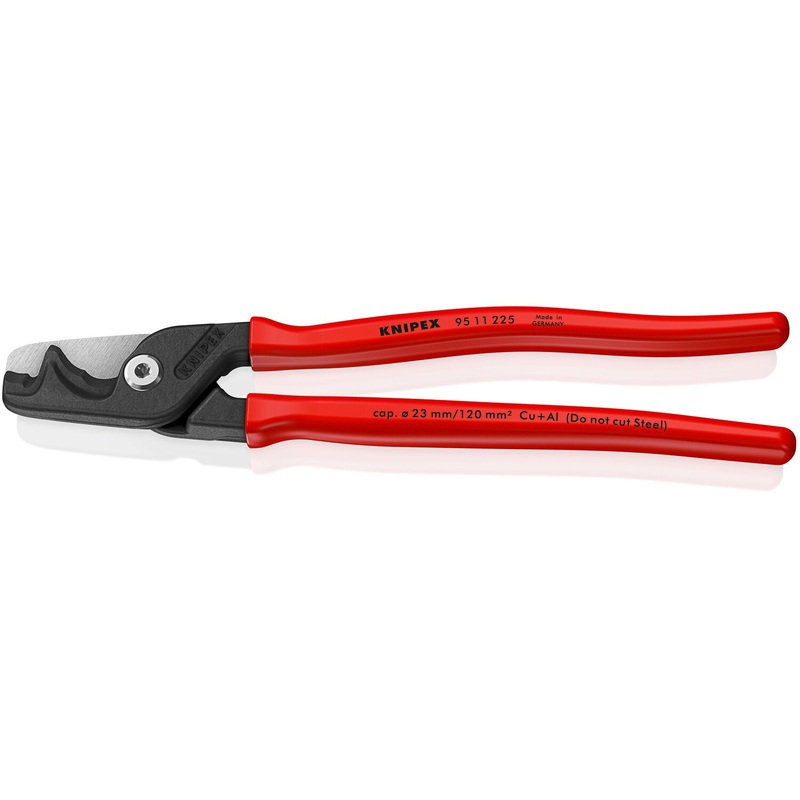

General InformationBrandKNIPEXPart Number95 11 225Product TypeCable ShearsPackagingRetailCountry of OriginGermanyUPC843221029722California ResidentsProposition 65 WarningPhysical CharacteristicsLength9.08″Width1.76″Height0.64″Weight0.37 kg0.81 lbColorBlack & RedFinishBurnishedMaterialHigh-Grade Forged Tool SteelDurabilityApprox. 56 HRCDetailsSizeCompatible Cables: Stranded, Fine Stranded, Solid

Cutting Capacity – Cu and Al Conductor: 29/32″

Wire Size: Up to 2/0 AWG (Solid and Stranded Cables), Up to 4/0 AWG (Fine Stranded Cables)Grip TypePlastic Coating (6 1/4″)Pliers TypeCable ShearsJaw Width1 1/4″Jaw Length1 1/4″Jaw Thickness1/2″FeaturesHigh-leverage joint, long handles and optimized cutting edges for an easier cut than with compact cable shears

Cuts solid copper or aluminum cables up to 2 AWG, stranded cables up to 2/0 AWG and fine stranded cables up to 4/0 AWG

Dual cutting areas: step cutting edges position cables close to the joint and the front cutting edge is used for the gradual cutting (“nibbling”) of larger cables

Easy one- or two-handed operation with minimal handle opening for large cable diameters

Slim head for better accessibility

Not suitable for steel-reinforced cables, e.g. ACSR

Adjustable, high-leverage bolted joint provides precise and smooth cutting

Pinch guard prevents operators’ fingers being pinched

Laser-hardened cutting edges (approx. 56 HRC)

High-grade special tool steel; forged; oil-hardened
