• -1 yr BLK3D Mobile Sketch & Document subscription
• -1 yr BLK3D Mobile Publisher subscription

Features:

STEREO CAMERA

• 2x 10 MP (158.00 mm diagonal calibrated base line)
• Field of view:80
• Focal length:4.0 mm (22 mm in 35 mm equiv. in 1:1)
• Aperture:F3.0
• 2x Synchronous LED Flash

PERFORMANCE

• Intuitive Android OS
• 64GB storage: Holds thousands of 3D images
• Fast data transfer with USB-C and WLAN
• Rechargeable battery lasts a full day

SIZE & WEIGHT

• 180 x 77 x 27 mm (7.1 x 3.1 x 1.1 in)
• 480 g / 17 oz

QUALITY MATERIALS

Aluminum housing for stability and durability. Chemically hardened, sunlight visible, multi-touch screen. Protective covering for grip and shock absorption.


LASER ACCURACY

Use the laser EDM combined with smart mapping tools to sketch accurate floorplans and combine them with 3D images. Achieve 1mm accuracy by assigning laser measurements to image measurements.

Laser Specifications

• Accuracy with favorable conditions *
• 1.0 mm / 0.04 in ***
• Range with favorable conditions *
• 250 m / 820 ft
• Smallest unit displayed
• 0.1mm / 1/32 in

PREMIUM PRODUCTION

Production of BLK3D photogrammetry tools is underway at a premium production facility in Austria. Watch this video to learn more about how the BLK3D is made and calibrated to deliver consistently precise measurements.

Leica BLK3D Premium Edition Package 3D Measurement Video

The BLK3D captures 3D measurable images & places precise measurements at your fingertips. With the BLK3D Software you can then share images & measurements with colleages & customers in multiple formats.

With its revolutionary combination of a calibrated stereo-camera, advanced algorithms & real-time edge computing, the Leica BLK3D makes hand-held 3D measurements, with professional-grade accuracy, possible. Every image captured is a complete & precise 3D measurement record.

Featured

The BLK3D captures 3D measurable images & places precise measurements at your fingertips. With the BLK3D Software you can then share images & measurements with colleages & customers in multiple formats.

Store, Organise & Share

Store your measurable images on the device & on your desktop. Organize your projects by tagging measurable images with searchable keywords for easy recall & share them in multiple formats.

New dimensions for 2D pictures

The BLK3D creates images that contain precise three-dimensional measurements.

The art of photogrammetry. Simplified

Un-matched combination of a calibrated stereo-camera, advanced algorithms & real-time edge computing fused with leading Electronic Distance Measurement (EDM) technology.

Progressive project documentation for AEC

Capture critical moments throughout the life of a building.

Access projects. Anywhere, anytime

Measure in your image on the handheld imager, on the desktop, on-site or in the office.

Object detection & snapping

Auto-Snapping uses computer vision technologies to select the right points for your measurements.

Working with digital floorplans

Create floorplans & import existing ones. Add measurable images. Document construction progress with multiple images over time.

Reality Capture

Capture 3D measureable images.

Laser

Use the integrated Laser EDM to add highly accurate measurements to 3D images, or to take stand-alone measurements.

Sketch & Document

Create floorplans & attach measurable images to them. Useful for documenting construction progress over time.

New Project

Group 3D images & floorplans as a Project

Organiser

Organize projects

Includes

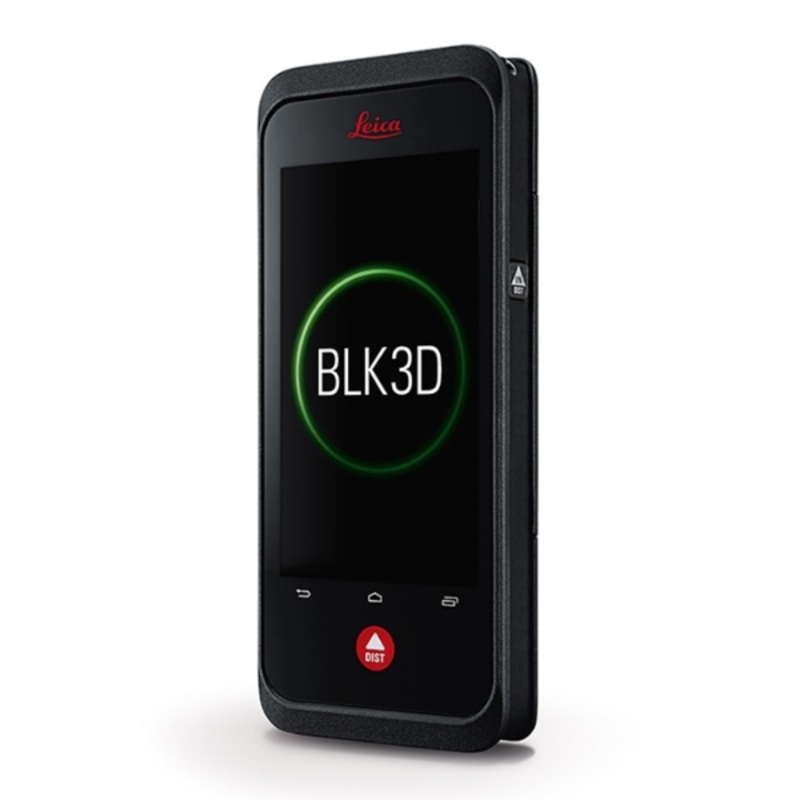

• Leica BLK3D Imager
• 1 yr BLK3D Mobile Sketch & Document subscription
• 1 yr BLK3D Mobile Publisher subscription
• Power adapter
• Battery
• Neck strap

Software and user manuals can be downloadedhere.
