Description

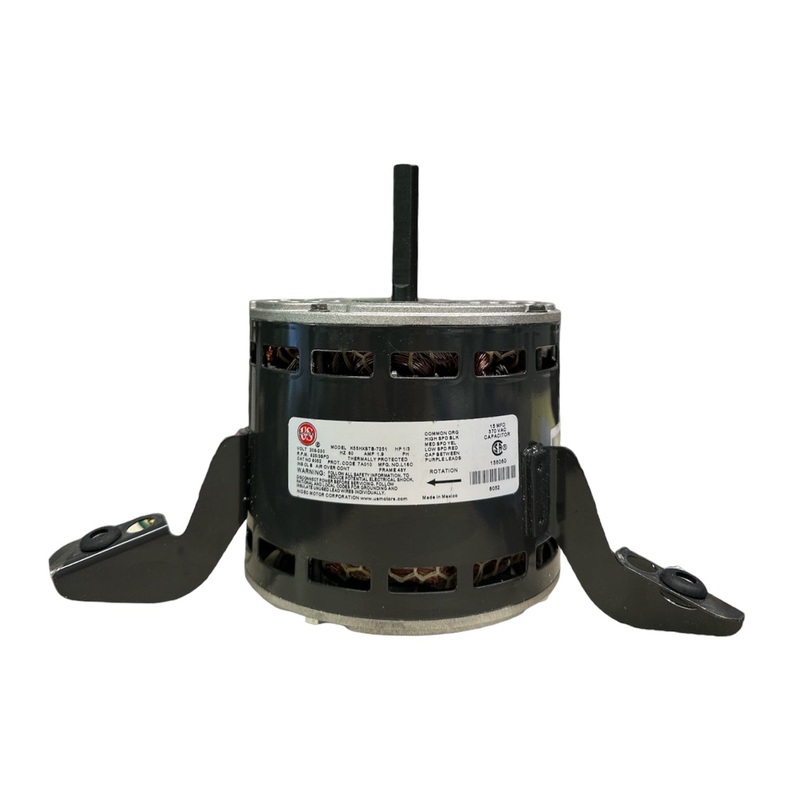

This is a brand new Replacement Blower Motor part # 8052 that is compatible with Lennox Ducane Armstrong Part# 34K76. This blower motor is a Single Phase, 48Y NEMA Frame Size, Open Air Over Enclosure, SAB Bearing, Bracket Mount, Permanent Split Capacitor Motor

Specifications:

HP: 1/3
RPM/Speed: 825/3
Volts: 230
Capacitor MFD: 15.0
Amps: 1.9
Shaft N: 2.5
Shell XI: 4.8
Total C: 7.3

Additional details:

1/3 HP, 825 RPM, 1-speed, 208-230V, 1.9 amps
Shaft size: 1/2 x 2.5, rotation CW shaft end
5.6 diameter motor case length 4.81
Flex mount with sleeve bearings
Continuous duty, open-air enclosure, class B insulation, 40C ambient temperature, 36 leads
