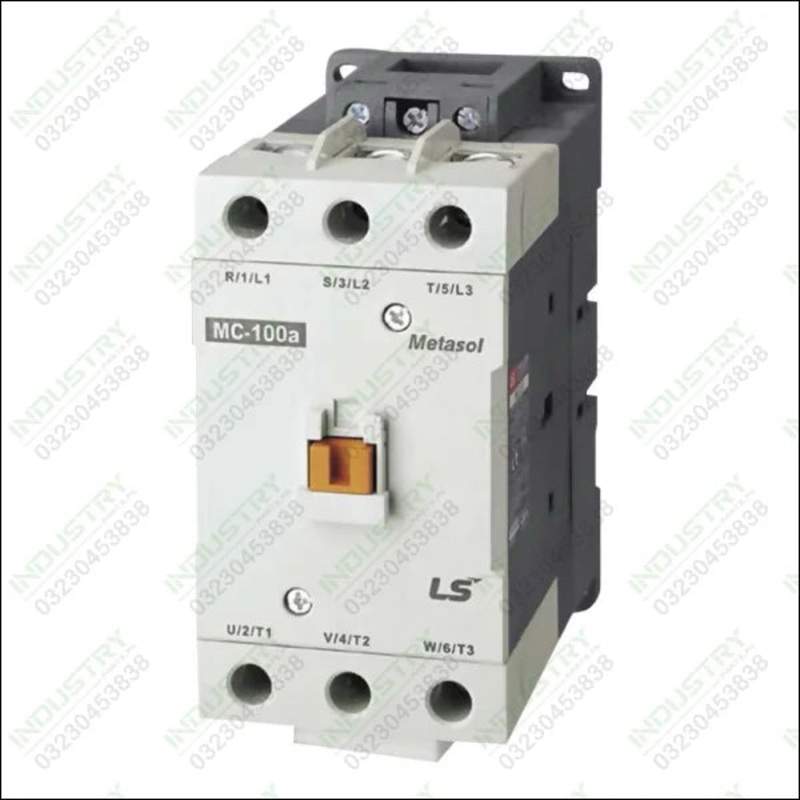

LS MC-100a Meta sol Contactor in Pakistan BR1242

The LS Meta sol range of contractors provides trouble-free switching and maximum protection for motors and other electrical equipment. They are compact, easy to install and extremely reliable.

Features:

• Compact design for space saving
• DIN rail and screw mountable
• Finger-proof design
• Broad range of accessories
• World class products conforming to IEC and UL standards

Specification:

Model: MC-100a Amp Rating: AC3 100A Coil Voltage: 240VAC – 3-pole(NO) main contact – Finger proof design – DIN rail or screw mountable – Front/side mountable accessories available – 1NO and 1NC Auxiliary contact built-in as standard. Made in korea Description

• Contactor LS MC-100a
• Rated current 100A (load AC3 voltage 380 / 440V)
• Capacity 55kw/75hp
• Number of poles 3P.
• Additional contact: 1NO or 1NC.
• Coil Voltage 220v.
• Working temperature -5 to + 55 C.
• IP20 protection rating.
