• Provides direct and accurate measurements of inductors, capacitors and resistors with different frequencies and is selectable for auto/manual ranging
• 11 000 Count LCD display
• Min / Max
• Relative Mode
• Measures inductance to 20H
• Resistance 40M
• Capacitance 110mF
• Data hold

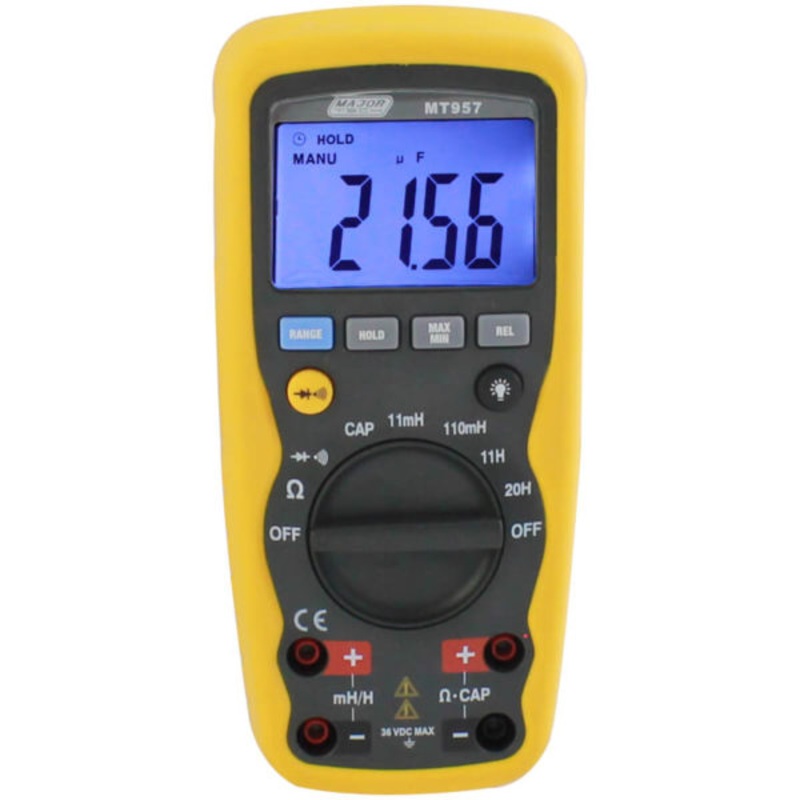

The MT957 LCR meter is battery operated and provides direct and accurate measurements of inductors, capacitors and resistors with different frequencies and is selectable for auto ranging of manual ranging. Convenient front panel push buttons and controls include functions such as data hold, maximum and minimum record mode and relative mode. The 11,000 count LCD display is backlit for easy reading in dark locations.

Specifications

Function Range Resolution Accuracy Resistance 100.0 40M 0.01 (1.2% 0.5) Capacitance 11.000nF 110.00mF 1pf (5.0% 0.7pF) Inductance 11.000mH 20.00H 1H (2.0% + 0.05mH) Over Range Indication Yes Digital Display 11000 count LCD Back Light Yes Diode Test Yes O Adj. Yes Min/Max Yes Relative Mode Yes Data Hold Yes Enclosure Double moulded case Low Battery Indication Yes Battery 9V Weight 255g Dimensions 150 x 70 x 48mm Safety specs IEC61010-1 CAT III 600V

Includes:

• Carrying case
• Test Leads
• Instruction manual

Downloads

MT957 Technical Datasheet
MT957 Instruction Manual
