FEATURES:Increased rotation speed delivers higher torque than DTW4503 modes of reaction time for automatic stop available both in forward and reverse rotation modesTrigger switch with full speed mode allows for less hand and finger fatigueCompact design wi

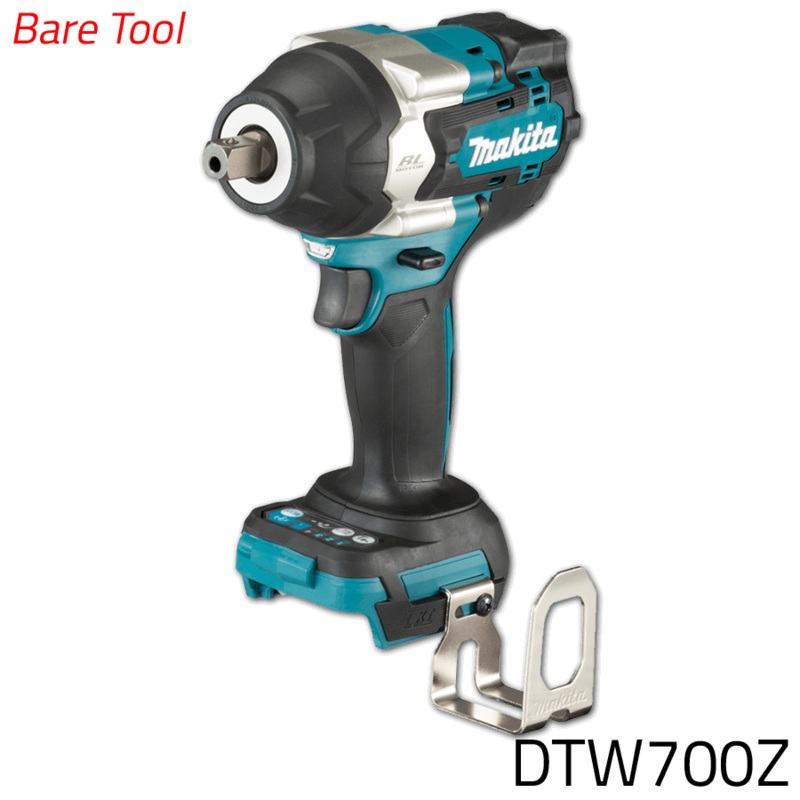

Bare Tool – Battery and Charger not yet included
| Fastening Capacities | |
| High Strength Bolt (Grade 10.9):M10 M16 (3/8 5/8) | |
| High Strength Bolt (Grade F10T):M12, M16 (7/16, 5/8) | |
| Square Drive | 12.7 mm (1/2) |
| No Load Speed (RPM) | Max / Hard / Mid / Soft:0 2,200 / 1,900 / 1,200 / 500 |
| Impacts Per Minute (IPM) | Max / Hard / Mid / Soft:0 2,700 / 2,400 / 1,700 / 1,000 |
| Nut-Busting Torque | 1,000 Nm (740 ft.lbs.) |
| Max Fastening Torque | 700 Nm (520 ft.lbs.) |
| Max Output | 430 W |
| Vibration Level | Impact tightening of fasteners of the maximum capacity of the tool:19.0 m/s |
| Vibration K Factor | Impact tightening of fasteners of the maximum capacity of the tool:2.0 m/s |
| Sound Pressure Level | 94 dB(A) |
| Sound Power Level | 105 dB(A) |
| Noise K Factor | 3 dB(A) |
| Dimensions (L x W x H) | w/ BL1815N / BL1820B:170x81x258 mm (6-11/16×3-3/16×10) |
| w/ BL1830B / BL1840B / BL1850B / BL1860B:170x81x276 mm (6-11/16×3-3/16×10-7/8) | |
| Net weight | 2.3 2.7 kg (5.1 6.0 lbs.) |
