Description

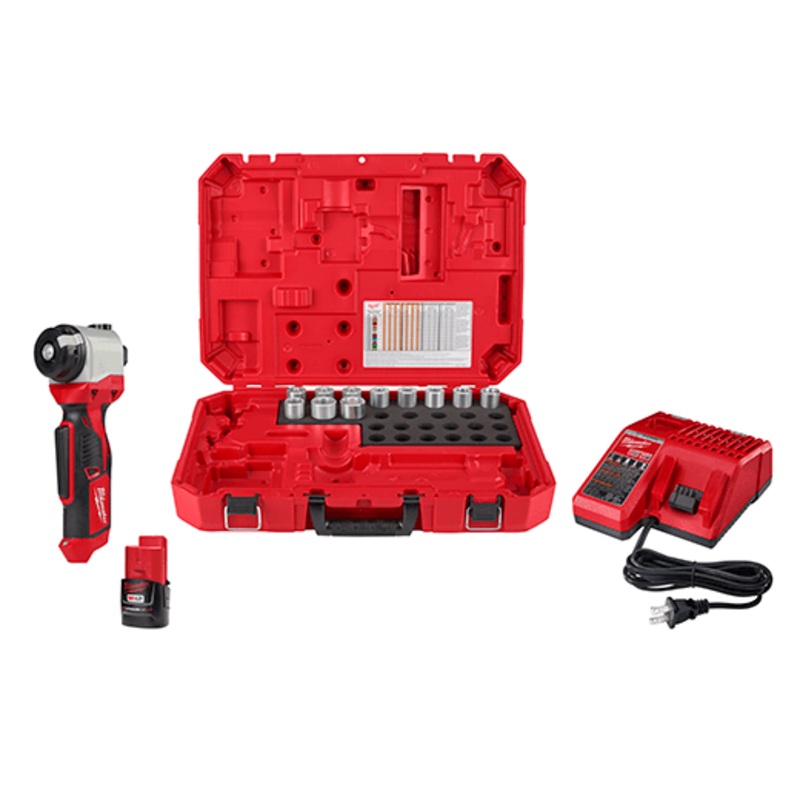

The Milwaukee M12 cable stripper kit for AL THHN / XHHW vastly improves the cable stripping experience. With no exposed blades, the cordless cable stripper provides safer stripping than with a knife. The cable stripper’s compact, right angle design enables users to maneuver it more easily in tight spaces with less strain on the wrist. The bushing design and adjustable depth gauge deliver cleaner, more accurate and consistent strips across all sizes. The cable jacket stripping tool is not only compatible with all Milwaukee bushings but is also compatible with competitive quick change bushings. In addition to the battery powered stripper, this kit contains 11 bushings for aluminum THHN and XHHW cables, one M12 REDLITHIUM CP2.0 battery, an M18 & M12 multi voltage charger, and a carrying case.

Features

• Protects against Knife Injuries on the Job
• Depth Gauge Adjustment up to 3″ for Accurate, Consistent Strips
• Compact Head, Internal Depth Gauge for Easy Access
• Optimized Bushing Design Prevents Nicks
• Variable Speed Trigger for Controlled Strips
• Ability to Strip in Crowded Panels and Switch Gears
• Quick-Change Bushing System for Faster Stripping Across Sizes
• Strips 1/0 – 750 MCM Cu & Al THHN/XHHW Cable
• Strips 1/0 – 500 MCM Cu RHW/RHH/USE Cable
• Compatible with All M12 Batteries

Kit Includes

(1) M12 Cable Stripper (Tool-Only) (2435-20)
(1) 1/0 AWG Al THHN/ XHHW Bushing (49-16-B01A)
(1) 2/0 AWG Al THHN/ XHHW Bushing (49-16-B02A)
(1) 3/0 AWG Al THHN/ XHHW Bushing (49-16-B03A)
(1) 4/0 AWG Al THHN/ XHHW Bushing (49-16-B04A)
(1) 250 MCM Al THHN/ XHHW Bushing (49-16-B250)
(1) 300 MCM Al THHN/ XHHW Bushing (49-16-B300)
(1) 350 MCM Al THHN/ XHHW Bushing (49-16-B350)
(1) 400 MCM Al THHN/ XHHW Bushing (49-16-B400)
(1) 500 MCM Al THHN/ XHHW Bushing (49-16-B500)
(1) 600 MCM Al THHN/ XHHW Bushing (49-16-B600)
(1) 750 MCM Al THHN/ XHHW Bushing (49-16-B750)
(1) M18 & M12 Multi-Voltage Charger (48-59-1812)
(1) Carrying Case

Technical Information

Height 11.496″
Length 8.46″
Weight 3.65 lbs
Width 2.76″
Power Source Cordless
Battery System M12

Document

Owner’s Manual
