Description

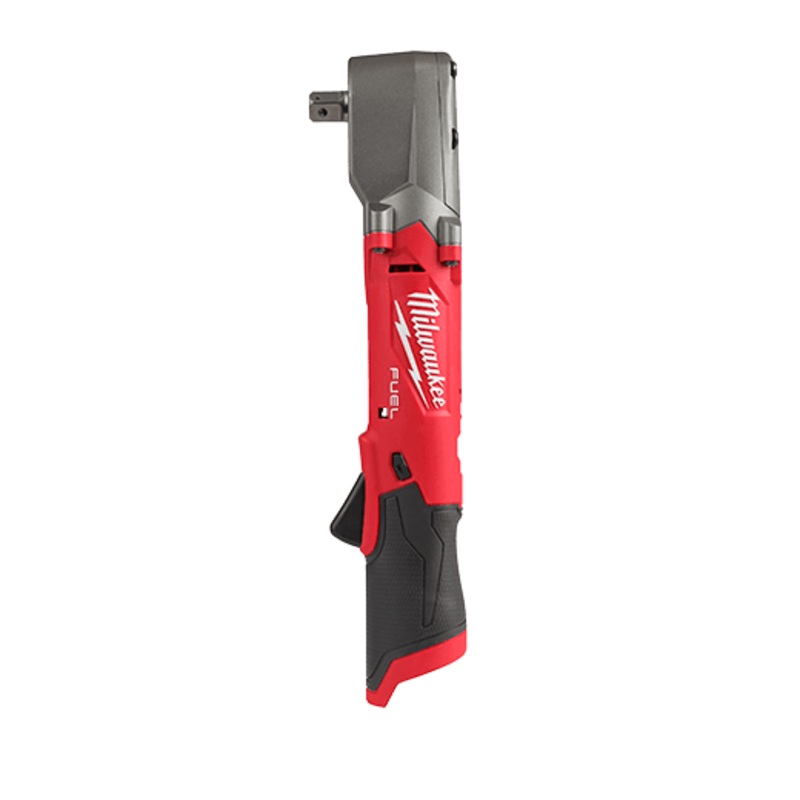

The M12 FUEL 1/2″ Right Angle Impact Wrench w/ Pin Detent is the industry’s most powerful right angle impact wrench. With up to 220 ftlbs. of nut busting torque, removing stubborn bolts and fasteners are no longer an issue. Along with power, the tool offers users maximum access, and ultimate control for hard to reach applications. With a head profile of only 2.8″, this tool easily fits into tight spaces, making users more productive, while decreases their need for socket extensions often used with pistol grip impact tools. 4Mode Drive Control will allow unmatched control in various fastening and bolt removal applications. Modes 13 provide RPM and IPM adjustments for precision control. In Mode 4, this tool is equipped with Auto Shutoff Mode in forward and Bolt Removal Mode in reverse. Auto Shutoff Mode will prevent overtightening of bolts by applying no more than 15 ftlbs of torque. Bolt removal mode will provide more control as RPMs drastically slow down once the bolt is loosened. The REDLINK PLUS Intelligence ensures users achieve maximum performance and protects the tool against overloads, overheating, and over discharge. The M12 REDLITHIUM Battery Packs (NOT INCLUDED) are compatible with all M12 tools, delivering more work per charge and more work over the life of the pack.

Features

• POWERSTATE Brushless Motor delivers up to 220 ft-lbs. of nut-busting torque, making it the most powerful cordless right angle impact wrench on the market
• A 2.2″ head profile design allows for more access in tight spaces
• Auto shut-off mode prevents over tightening and increases productivity by applying no more than 15 ft-lbs. of torque.
• Bolt-removal mode offers more control after bolt breakaway as RPMs drastically slow down once the bolt is loosened.
• The long body profile of 14.17″ allows for more access in hard to reach spaces
• REDLINK PLUS Intelligence ensures maximum performance and protects from overloads, heating and over-discharge
• LED light to illuminate the work area
• Premium rubber over mold withstands corrosive materials and provides increased comfort when in use
• Works in up to to 69kV environments
• Compatible with all M12batteries & Chargers (NOT INCLUDED)

Technical Information

Height: 2.81″
Length: 13.28″
Weight: 2.86 lbs
Width: 2.32″
Power Source: Cordless
Battery System: M12

Document

Owner’s Manual
