Description

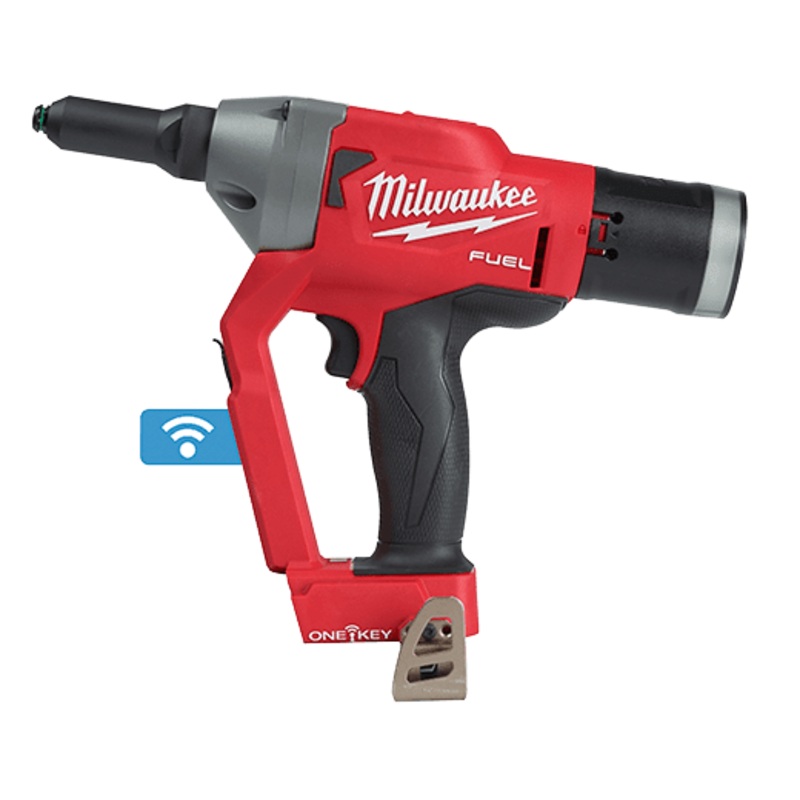

The MILWAUKEE M18 FUEL Blind Rivet Tool w/ ONEKEY is the fastest cordless rivet tool. It eliminates the need for hoses and compressors while delivering up to 3X longer life than other cordless riveters. This rivet gun significantly increases productivity, installing rivets up to 50% faster than cordless competitors. The premium steel alloy 3jaw design delivers more work between jaw changes. While lightweight, this Milwaukee rivet gun was designed to withstand harsh shop or assembly plant environments, manufactured with an all metal gearcase, impact strength plastics, and protective over mold. The POWERSTATE Brushless Motor delivers 4,500 lbs. (20kN) of pulling force for high strength blind rivets in all materials. This rivet tool pulls up to 900 3/16 aluminum or 500 1/4 aluminum blind rivets on one charge with an M18 REDLITHIUM CP2.0 battery (NOT INCLUDED). M18 REDLITHIUM Battery Packs(NOT INCLUDED) fit M18 tools, providing more work per charge and more work over the battery life. REDLINK PLUS Intelligence ensures maximum performance and protects the rivet tool and battery against overloads, overheating, and over discharge. ONEKEY compatibility allows for tracking and managing tools.

***BATTERY AND CHARGER ARE NOT INCLUDED

Features

• Up to 50% faster than cordless competitors
• Maximum tool and jaw durability provide up to 3X longer life
• Eliminates compressors and hoses providing lower cost of ownership, greater productivity, more portability and more safety
• Installs 3/16″ (4.8mm), 7/32″ (6.0mm), 1/4″ (6.4mm) and 9/32″ (7.0mm) aluminum, steel, and stainless steel rivets
• Installs up to 500 1/4″ aluminum blind rivets on one REDLITHIUM CP2.0 battery charge
• POWERSTATE Brushless Motor delivers 4,500 lbs. (20kN) of pulling force for high strength blind rivets in all materials
• 1.18″ stroke length
• Weighs only 5.6 lbs. with REDLITHIUM2.0Ah battery
• Only 12.5″ in length including the mandrel collector
• ONE-KEY Compatible: Ability to Track and Manage tools for increased productivity and investment protection
• Premium rubber over-mold withstands corrosive materials and provides increased comfort when in use
• Compatible with all M18batteries and chargers (NOT INCLUDED)

Technical Information

Height: 9.5″
Weight: 4.66 lbs
Width: 2.5″
Power Source: Cordless
Rivet Sizes: 3/16″, 7/32″, 1/4″, 9/32″
Rivet Material: Aluminum, Steel, Stainless Steel
Pull Force: 4,500 lbs
Stroke Length: 1.18″
Nose Reach: 3.13″
Length with Mandrel Collector: 12.5″
Length without Mandrel Collector: 10.13″
Battery System: M18

Document

Owner’s Manual
