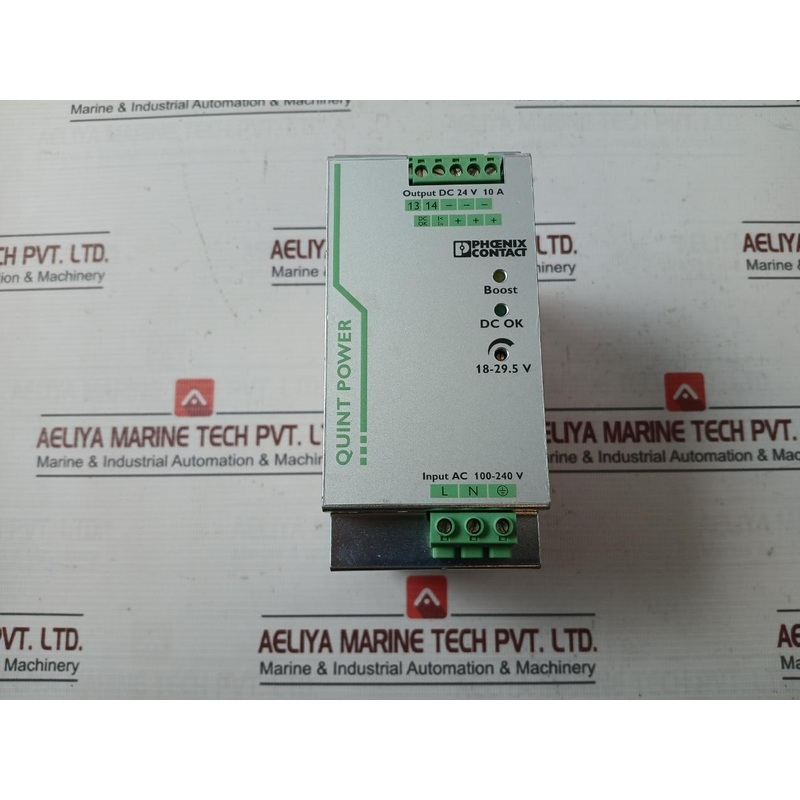

Phoenix Contact Quint-ps/1Ac/24Dc/10 Switching Power Supply 50-60Hz A Rev.07
Made By Phoenix Contact
Quint Power
Quint-ps/1Ac/24Dc/10
18-29.5 V
Order No: 2866763
Input: 100-240V~/50-60Hz/4.0-1.7 A
110-250V —/3.4-1.5A
Operational Voltage: 85-264V~/90-350V— (Ul508:300V—)
Output: 24V — /10A (Boost 15A; 60A/12Ms)
Eoe13010449
Rev.: 07
220000000000771703
771703
-25.+70C/-13. +158F (Grater Than +60C/+140F Derating)
-40C/-40F Startup
En 61000-6-2
En 61000-6-3
Max. Ambient 60C
Uta 107
Made In Thailand
Weight: 1.150 Kg
