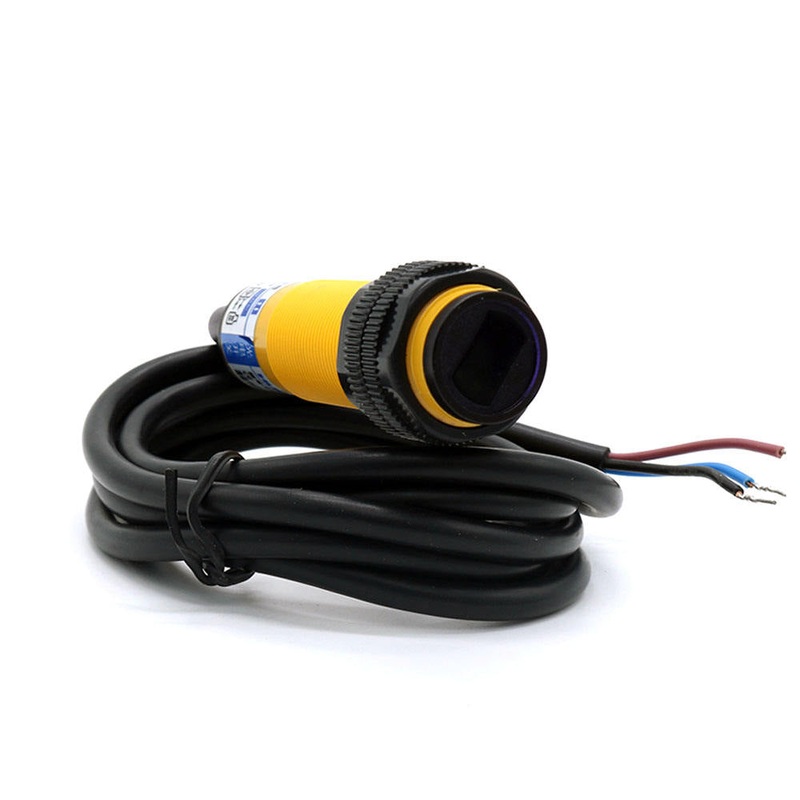

The E3F-DS10C3 is a diffuse reflection photoelectric switch that uses an infrared light beam to detect objects without touching them. What makes this model stand out is its NPN NO+NC output, meaning it provides both a Normally Open and a Normally Closed electrical signal simultaneously, offering greater flexibility for controlling automated systems. It’s commonly used in industrial settings for reliable object sensing.

Features of the Photoelectric Switch-E3F-DS10C3:

• Diffuse Reflection (Integrated Tx/Rx): Detects objects by reflecting an infrared light beam (660nm) back to its receiver.
• NPN NO+NC Output: Offers both Normally Open and Normally Closed contacts for versatile control.
• Non-Contact Detection: Senses objects without physical touch, extending sensor and object lifespan.
• Cylindrical Shape (M18): Standard M18 design for easy industrial mounting.
• Protective & Indicative: Includes reverse connection, surge, and short-circuit protection; features a red LED status indicator.

Specification of the Photoelectric Switch-E3F-DS10C3:

• Model: E3F-DS10C3
• Detection Method: Diffuse Reflection
• Detection Distance: 10cm 10%
• Output Type: NPN NO+NC (4-wire)
• Working Voltage: DC 10-30V (or 6-36V DC)
• Output Current: Max 200mA (or up to 300mA)
• Appearance: Cylindrical (M18)
• Response Time: 1.5ms (or 1ms)
• Light Source: 660nm Infrared
• Protection Level: IP67
• Operating Temperature: -30C to +65C
• Housing: Nickel-plated brass/ABS, PMMA lens
• Cable Length: 1.2m to 1.8m

Uses:

• Object Detection: Confirms presence/absence on production lines, conveyors, and in assembly.
• Counting: Reliably counts passing products.
• Positioning: Aids precise component placement in machinery.
• Security: Simple perimeter or movement detection.
• Automation Control: Triggers actions like motor start/stop or pneumatic cylinder activation based on detection.

Benefits:

• High Versatility: NPN NO+NC output offers maximum circuit integration flexibility.
• Reliable & Accurate: Consistent infrared detection across various materials/conditions.
• Long Lifespan: Non-contact operation reduces wear, extends durability.
• Robust & Protected: IP67 rating and built-in circuits ensure performance in harsh environments.
• Easy Integration: Standard M18 size and clear outputs simplify installation.

Package includes:

• 1x Photoelectric Switch-E3F-DS10C3
