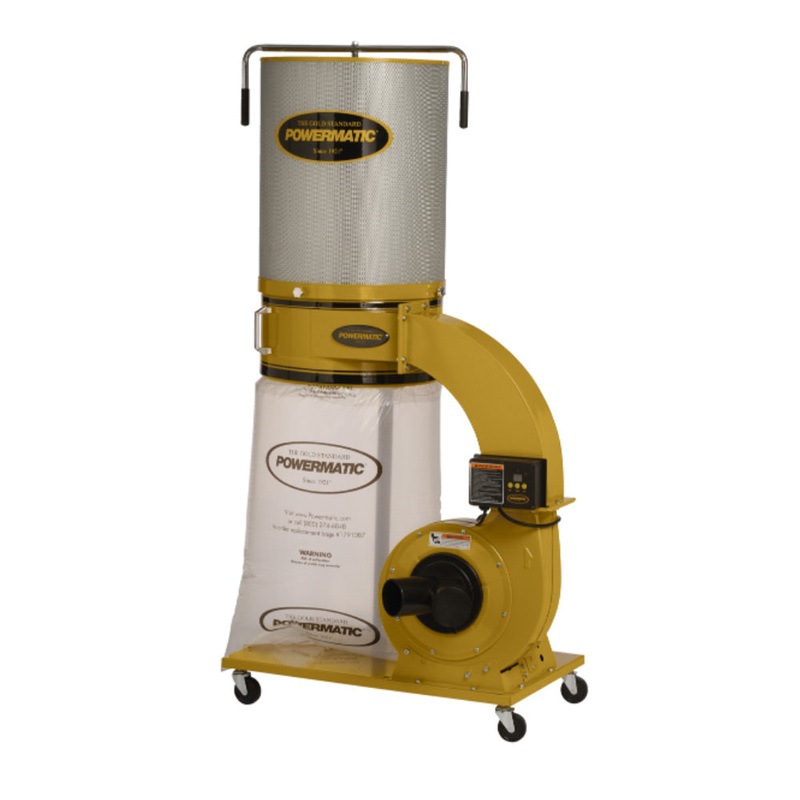

The PM1300TX Dust Collector features the exclusive TurboCone which improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bag. The canister filter offers superior filtering surface area over standard bags, and captures 98% of 2-micron particles.

A digital timer can be set for up to 99 minutes, and an infrared sensor allows remote control operation. The all-metal duct improves rigidity and air flow. The clear collector bags are large capacity, which means less down-time changing them. Four swivel casters and conveniently located handles allow for easy mobility.

[TABS]

Features

• 10 Cubic feet capacity collection bag reduces number of bag changes
• All-metal duct construction for rigidity and improved air flow
• Cloth collection bag with view window uses snap ring for rapid installation/removal
• Dual 4″ dust ports for simultaneous collection from two machines
• Eliminates premature filter clogging for sustained performance
• Four swivel casters for easy maneuverability
• Remote-controlled digital timer can be programmed for up to 99 minutes
• The large steel impeller is powered by a 1-3/4HP motor for peak performance.
• TurboCone improves chip separation and collector bag packing efficiency

Specs

1-Hose Connection Diameter: 6″
2-Hoses Connection Diameter: 4“
Air Flow @ 6″: 1,300 CFM
Velocity @ 6″: 5,374 FPM
Bag Diameter: 20“
Canister Filter Length: 26“
Collection Bag Length: 26“
Efficiency: 2 Micron
Filter Bag/Canister Length: 26“
Impeller Diameter: 12“
Impeller Fins: 6
Impeller Material: Steel
Motor Amps: 15/7.5 A
Motor: 1-PH
Horsepower: 1-3/4hp
Motor Voltage: 115V/230V
Prewired Voltage: 115V
Sound Rating: 75-90 dB
Static Pressure: 11.31 Wc.
Net Weight: 154 lbs.
Overall Dimensions (L x W x H): 37“ x 29“ x 72
