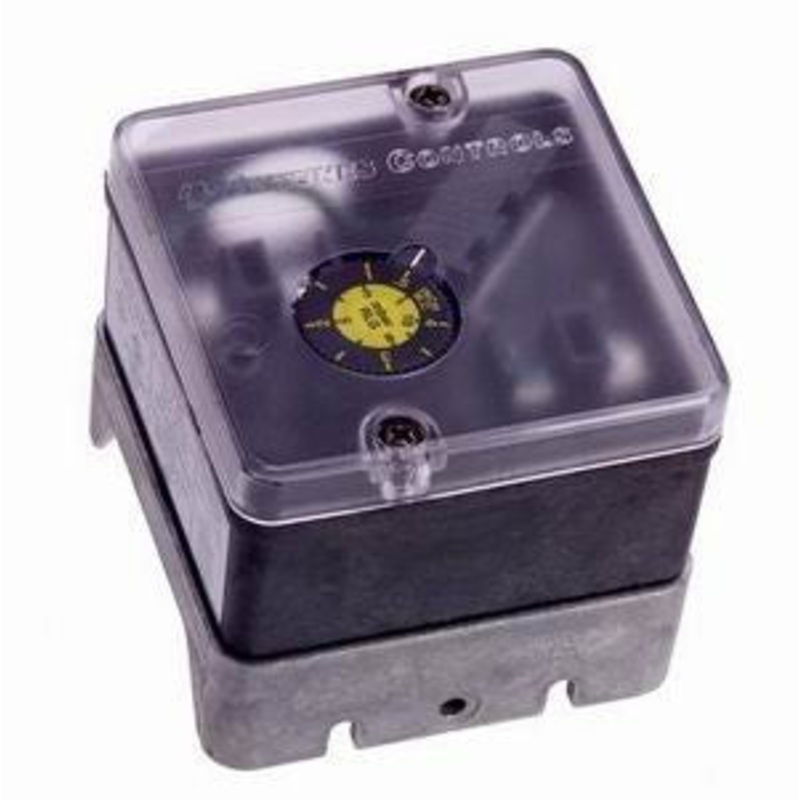

High gas ventless pressure switch with adjustable setpoint and automatic reset mechanism to trip at rising pressure conditions and reset automatically when conditions return to setpoint.

AvailablePressure Ranges:

• 0.8-4″ WC (1.3-10 mbar) 8102111102 RHGP-G .8-4
• 2-20″ WC (5-50 mbar)8102111203 RHGP-G 2-20
• 5-35″ WC (12.6-87 mbar) 8102111304 RHGP-G 5-35
• 1-4 PSI (0.7-0.28 bar) 8102113005 RHGP-G 1-4

Features and Specifications:

• Manufactured byCrossroads Controls, formerly by Antunes Controls
• Approvals:UL, FM, CSA
• Electrical Ratings:
• Max Surge Pressure:15 PSI
• Max. Operating Pressure: 6 PSI (400 mbar)
• Ambient Operating Temperature:-40F to 140F (-40C to 60C) Field wiring to be rated @ 60C for maximum 140F ambient
• Connections:1/4″NPT Gas inlet

Accessories:

• G-Series NEMA 3 Weather-tight Kit
• G-Series Neon Light Indicator

Resources:

• Crossroads Controls Model G Gas Pressure Switch Datasheet
• Crossroads Controls Model G Gas Pressure SwitchInstallation Instructions
• Former Antunes Controls Literature:
• Model G Gas Pressure Switch Datasheet
• Model G Gas Pressure Switch Installation Instructions
