Small RO Caravan RV Mobile Home Reverse Osmosis Water Purifier

Small RO Caravan RV Mobile Home Depending on the variation selected in the drop-down menu above, we will supply as follows.

Item Variable

In Line Post RO Filters

RO Tank/s

ROI-4-G | Post RO GAC

1x Activated GAC Coconut Carbon [3-Stage]

As Selected

ROI-3-N | Post Silver GAC

1x Anti-Bacterial Silver Infused GAC [3-Stage]

As Selected

ROI-3-A | Post Mg Alkalising

1x Ionising Alkalising Hydrogenating [3-Stage]

As Selected

ROI-4-MG | Post Min + GAC

1x Minerals + 1x Coconut Shell GAC [4-Stage]

As Selected

Our systems are assembled in Queensland using high quality approved parts + we flush and test themembrane+ the system is pressure tested at our factory before being dispatched

Fluoride Removal + 99.99% Bacteria Elimination [depending on post filter selected]

Select Post Membrane Filter/s |[SYSTEM DOES NOT INCLUDE A BOOSTER PUMP – Membranes require water pressure above +/- 45psi or +/- 300kpa to perform optimally. We have a slower 50GPD membrane which is a low-pressure membrane and will start working from +/- 20psi or +/- 135kpa] but costs extra.

Produces +/ – 100GPD (+/- 380 litres per day) + All Filters + Faucet As Pictured + Selected Pressurised RO Accumulator Tank + Waste Clamp + Fittings

The option for an extra RO tank is in case you want to place one tank before the RO unit and one after it to stop pressure cycling and reduce how often your caravan pump kicks in / out. If only your caravan is always connected to mains water supply you should not need a low pressure membrane or an extra tank.

The reverse osmosis process results in the purest possible water and results in the total dissolved solids (TDS) count dropping by +/- 96% depending on environmental factors

This purification process is commonly considered to be the most effective method of purification available to the public and willconsistentlyproduce the lowest level of contaminant.

RO will reduce/remove all of contaminant in the feed water including chlorine, fluoride, volatileorganic compounds, disinfection by-products, heavy metals

See below table for effective reduction of common contaminants:

ELEMENT/COMPOUND

% REDUCTION

ELEMENT/COMPOUND

% REDUCTION

Barium

97%

Potassium

100%

Bicarbonate

100%

Radium

97%

Cadmium

97%

Selenium

97%

Calcium (Hardness)

99.90%

Silicate

99.00%

Chromate

95%

Silver

99%

Copper

97%

Sodium

98%

Detergents

97%

Strontium

97%

Fluoride

100%

Sulfate

100%

Lead

97%

PCBs

97%

Magnesium

100%

Insecticides

97%

Nickel

97%

Herbicides

97%

All of the parts that come into contact with the water in our systems are manufacturedfromBPA free food grade plastics. All of the filters and parts that wesource areof the highest quality and meet the required quality standards.

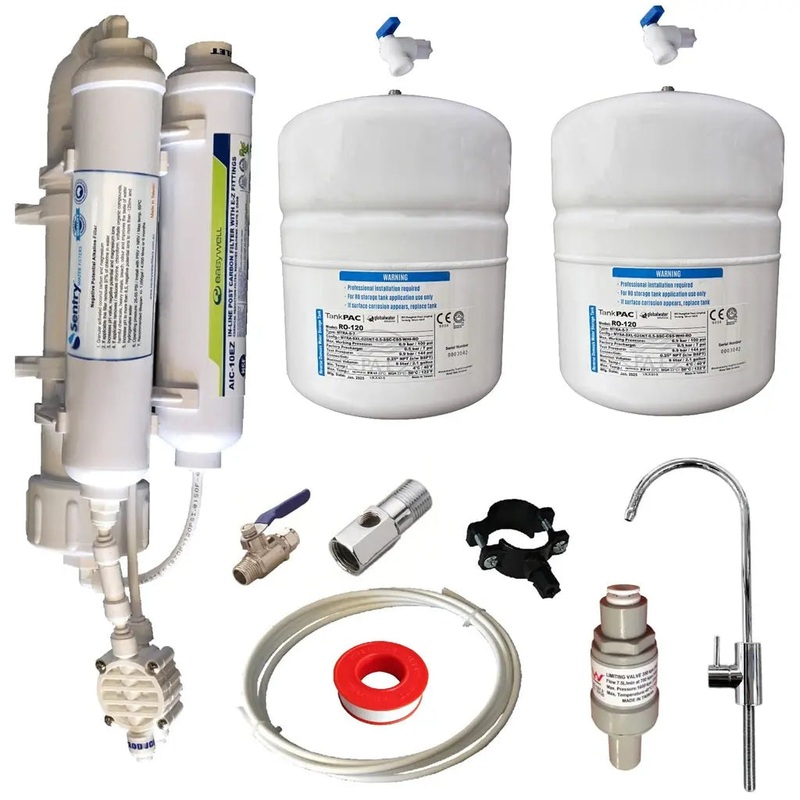

KIT INCLUDES:

• Multi stage reverse osmosis unit:
  • One in line sediment and granular carbon filter.
  • 1x 100GPD Sentry RO membrane [film sourced from the USA].
  • One or two post filters selected[in line conditioning filters after the membrane per pic’s 4-6 and drop down menu].
• Your choice of the following accumulator tank/s as selected:
  • +/- 2 Litre – (25cm height, 16cm diameter).
  • +/- 5 Litre – (30cm height, 20cm diameter).
• 1/2″ insert – Shares normal cold water line to most mixer taps.
• 50mm adjustable clamp.
• Modern drinking water faucet as selected.
• An approved 350kpa pressure reducing valve.
• Installation kit [includes +/- 4m tubing, thread tape, spare fittings.
• An installationandmaintenanceguide.

If you need a 3/4″ inlet insert instead of the more common 1/2″ one please let us know as we send this item with a 3/4″ insert instead of a 1/2″ one

This RO unit has a 24 month warranty which is subject to our warranty terms and conditions and is installed with a pressure reducing

This listing includes a 350kpa pressure reducing and non-return valve and we also recommend that aleak detector shut off device is installed with any water filter and / or reverse osmosis system which is under pressure which we sell separately in our store

If you are not entirely satisfied with your purchase please contact us so that we can try to resolve your concerns

Why Choose the Small RO Caravan RV Mobile Home Water Purifier?

The Small RO Caravan RV Mobile Home Water Purifier is a compact and highly effective reverse osmosis system designed specifically for use in caravans, RVs, and mobile homes. It is locally assembled in Queensland with high-quality parts, and it is a reliable solution for producing pure drinking water. The system is capable of removing approximately 96% of total dissolved solids and is highly effective at eliminating fluoride and 99.99% of bacteria, depending on the post-filter selected.

Compact Design and Powerful Performance

This multi-stage unit is available with different filter and tank configurations to suit various needs. The system is built around a 100GPD Sentry RO membrane and includes a sediment and granular carbon pre-filter, along with your choice of one or two post-RO filters (such as Activated Carbon, Silver Infused, Alkalising, or Mineral). The system produces approximately 380 litres of water per day and is designed to operate on water pressure of +/- 45psi or greater (a low-pressure membrane is available for lower pressures). You can also select an optional extra RO tank to prevent pressure cycling with your caravan pump.

Seamless Integration and Easy Maintenance

The purifier is designed for easy installation, with a kit that includes a modern drinking water faucet, an approved 350kpa pressure reducing valve, and all necessary tubing and fittings. It shares a normal cold water line with most mixer taps. All water-contact parts are made from BPA-free food-grade plastics, and the unit is backed by a 24-month warranty. The product description also recommends installing a leak detector shut-off device for added safety.
