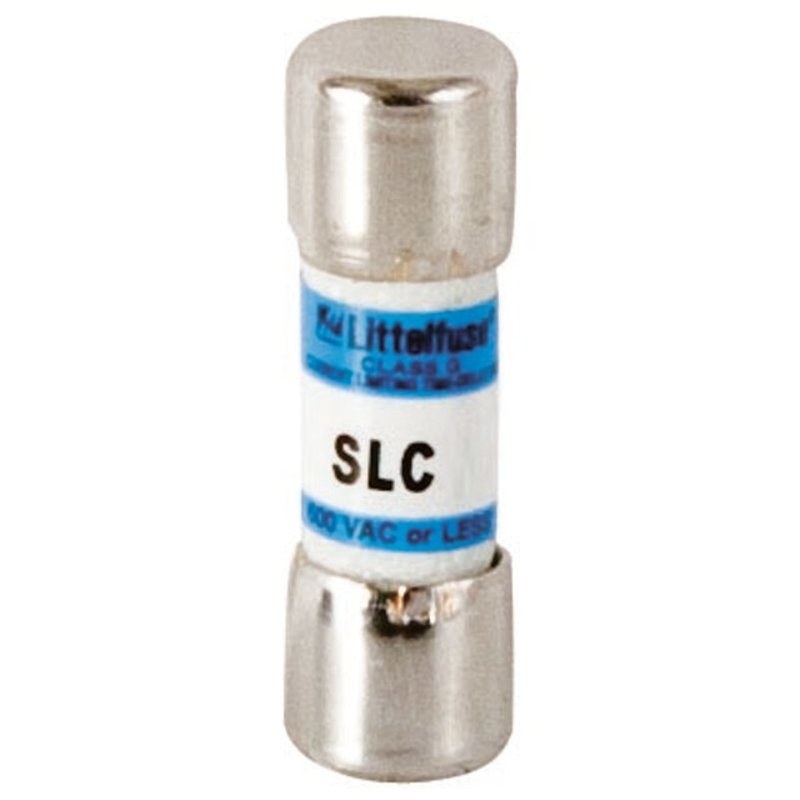

UL CLASS G MEDIUM TIME DELAY 500A The unique design of Littelfuses compact SLC series Class G fuses provide additional time-delay over competitive products which increases system reliability Compact Class G fuses were the first fuse series to approach midget fuse dimensions and meet NEC requirements for branch-circuit protection The unique dimensions of SLC series Class G fuses prevents insertion of lower voltage fuses in Class G fuse holders The fuses varying length prevents insertion of higher ampere rated fuses in fuse holders designed for lower ampere ratings Class CC fuses are replacing Class G fuses in many new designs Class CC fuses superior time delay plus higher voltage and interrupting ratings meet the needs of modern circuits Littelfuses introduction of POWR-PRO CCMR series fuses, with ratings up to 60 Amperes for providing branch circuit protection, are accelerating this trend Safety: 100,000 AIR Reliable interruption of all overcurrents up to 100,000 amperes Current limiting design reduces damage to equipment caused by heating and magnetic effects of short circuit currents Medium time-delay allows fuses to be sized closer to actual equipment requirements no need to greatly oversize to withstand harmless equipment or system surges Reduced Downtime: Medium time-delay may reduce downtime caused by power surges or equipment demands

• Diameter: 13/32 in
• Length: 1 5/16 in
• Speed: Medium Time Delay
• Class: G
• Volts AC: 600
• Mounting: Cartridge
• Amps: 0.500
• Standards: California Proposition 65
• Interrupt Rating DC: 10 kA
• Interrupt Rating AC: 100 kA
