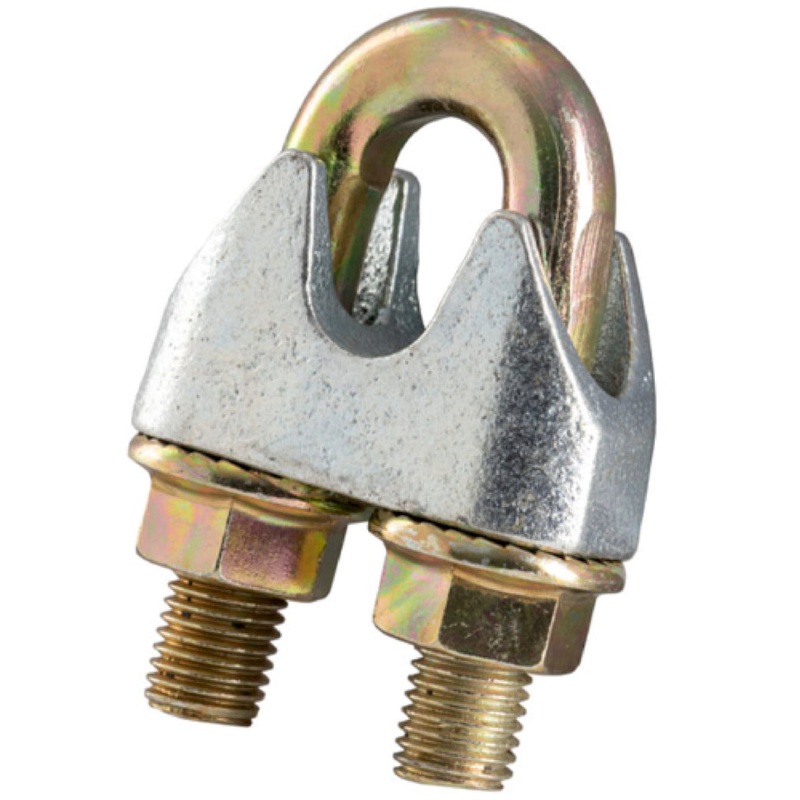

Wire Rope Grip BS EN Style – Type A

• Malleable steel ungrooved bridge. Mild steel u-bolt and nuts.
• Electro galvanised finish.
• Meets the performance requirements of BS EN 13411 Part 5 Type A (Formerly DIN 1142). 13mm is additional and proportional to the standard.*
• Marked with size on bridge and manufacturers ID on bridge and U bolt.
• Certification – Declaration of Conformity

Spec

SKU Rope Dia A B C D F H L Weight mm mm mm mm mm mm mm mm kgs/100 286-800-1 5 5 25 12 13 25 13 13 2.1 286-800-2 6.5 6 32 14 17 30 16 14 4 286-800-3 8 8 41 18 20 39 20 18 8.2 286-800-4 10 8 46 20 24 40 20 21 9.2 286-800-5 12 10 56 24 28 50 24 25 25 286-800-6 13 12 64 27 30 55 28 29 27.5 286-800-7 14 12 66 28 31 59 28 30 35 286-800-8 16 14 76 32 35 64 32 35 43 286-800-9 19 14 83 36 36 68 32 40 49 286-800-10 22 16 96 40 40 74 34 44 68 286-800-11 26 20 111 46 50 84 38 51 117 286-800-12 30 20 127 54 55 95 41 59 140 286-800-13 34 22 141 60 60 105 45 67 213 286-800-14 40 24 159 68 65 117 49 77 268
