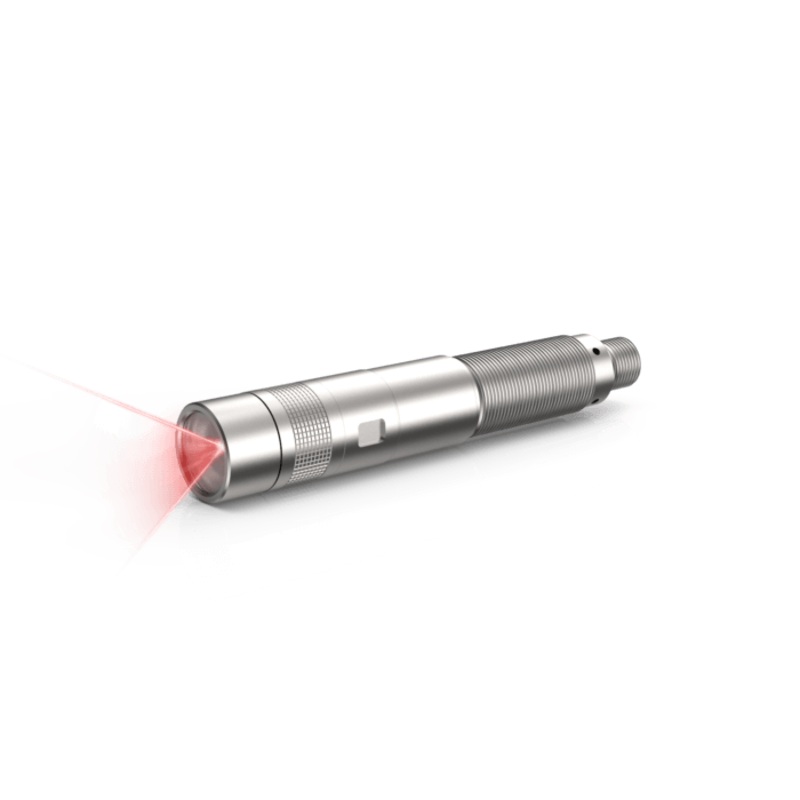

Z-Laser ZX20 Series Line Laser (530 VDC)

Model Product # Wavelength Output power Projection Fan angle Laser class Z30-X20-H-F-405-flp30 722115016 405nm 30mW Homogeneous line (fine line) 30 2M Z160-X20-H-F-405-elp20 722115026 405nm 160mW Homogeneous line 20 3B Z20-X20-H-F-450-elp45 722115029 450nm 20mW Homogeneous line 45 2M Z60-X20-H-F-450-elp30 722115027 450nm 60mW Homogeneous line 30 3B Z60-X20-H-F-450-elp60 722115030 450nm 60mW Homogeneous line 60 3R Z20-X20-H-F-520-elp45 722125006 520nm 20mW Homogeneous line 45 2M Z5-X20-H-F-640-elp45 722135003 640nm 5mW Homogeneous line 45 1M Z15-X20-H-F-640-elp20 722135027 640nm 15mW Homogeneous line 20 2M Z30-X20-H-F-640-flp45 722135010 640nm 30mW Homogeneous line (fine line) 45 2M Z35-X20-H-F-640-elp45 722135028 640nm 35mW Homogeneous line 45 2M Z30-X20-H-F-640-elp75 722135041 640nm 30mW Homogeneous line 75 2M Z20-X20-H-F-640-51x51q23 722135041 640nm 20mW Grid projection (51 x 51 lines) 23 x 23 2M Z25-X20-H-F-660-elp45 722135037 660nm 25mW Homogeneous line 45 2M Z100-X20-H-F-660-elp30 722135029 660nm 100mW Homogeneous line 30 3R Z100-X20-H-F-660-elp45 722135039 660nm 100mW Homogeneous line 45 3R Z100-X20-H-F-660-elp60 722135040 660nm 100mW Homogeneous line 60 3R Z100-X20-H-F-660-elp90 722135023 660nm 100mW Homogeneous line 90 3B Z160-X20-H-F-660-elp60 722135042 660nm 160mW Homogeneous line 60 3B

The precise laser module

Due to automated production processes in which all optical components are purposefully aligned with a 14-axis robot, the ZX laser series sets new standards in lighting for image processing applications.
With a boresight error of less than 0.8 mrad, the ZX laser is one of the most accurate lasers on the market. Depending on the application and the material being tested, the user can choose between IR, red, green, or blue wavelengths. The tool-free, manual focus option allows the user to easily adjust the projection according to their required working distance.

Its industrial-grade laser design, along with consistent performance, work very well in harsh environments. This laser can be used in complex image processing setups, in sensors, and can even be integrated into sturdy processing machines such as saws.

Weight 125 g Dimensions 116 20 mm Wavelength

405 nm,450 nm,520 nm,635 nm,640 nm,660 nm,785 nm,830 nm

Output power

5 mW,10 mW,15 mW,25 mW,30 mW,40 mW,60 mW,80 mW,120 mW,160 mW,200 mW

Fan Angle

10,20,30 degrees,45 degrees,5 degrees,60 degrees,75 degrees,90 degrees

Projection

Cross,DOE,dot,line

Focus

fixed focus,manual focus

Modulation

analog,digital

Supply voltage

5 VDC 30 VDC

IP protection class

IP 67

Diameter

20 mm

Application

Machine Vision,OEM,Positioning

Downloads

• Datasheet EN ZX20
• CAD-File ZX20 (fix focus)
• CAD-File ZX20-F (focusable)
• GUI for ZX20 and ZXS
